Connecting Rod Kit 70-75 Kawasaki F5 F8 F9 Bighorn Bison 250 350 Vintco KR2060

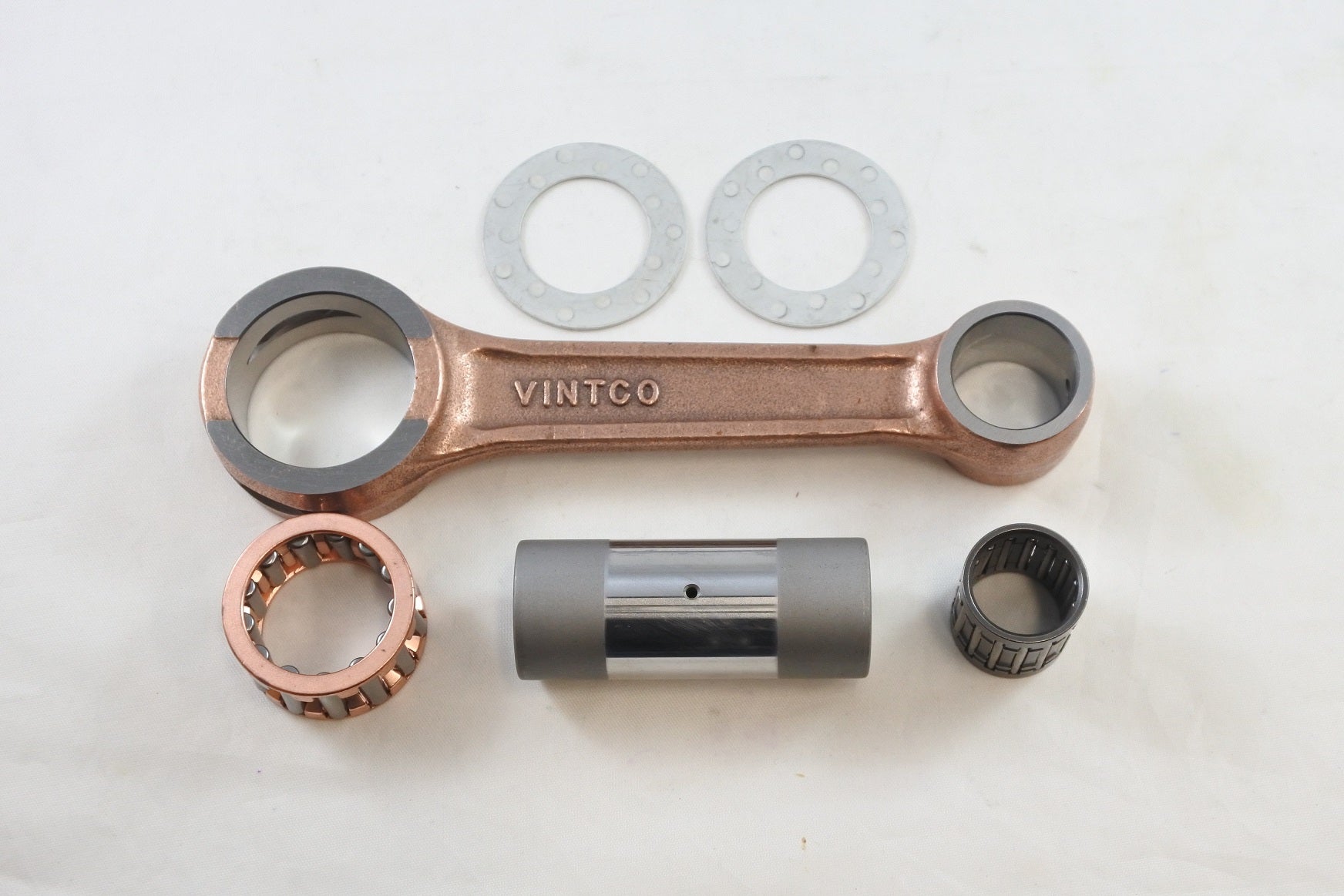

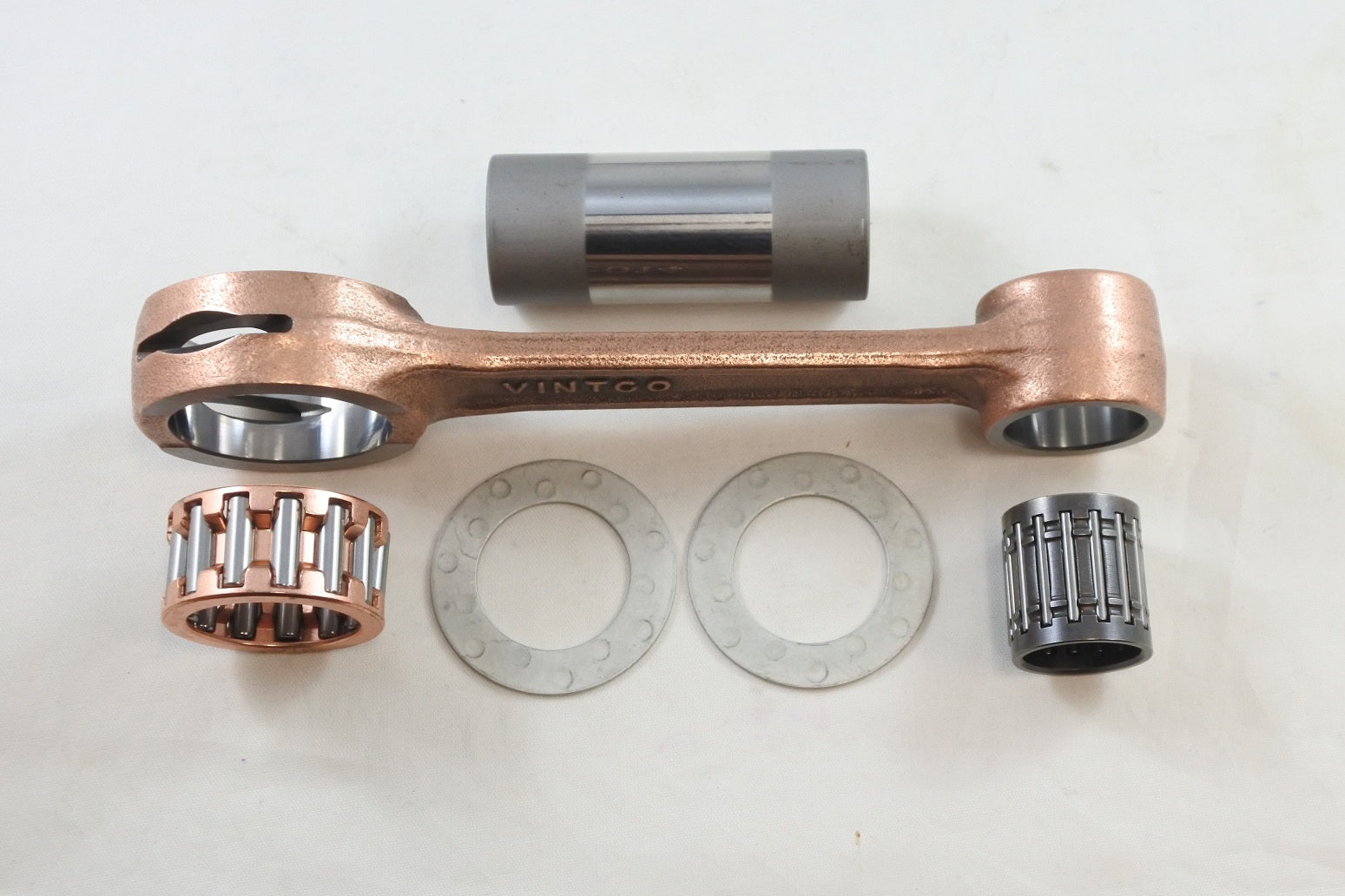

The VintCo KR2060 connecting rod kit is a newly manufactured replacement assembly for vintage Kawasaki F5 350 Bighorn, F8 250 Bison and F9 350 Bighorn models from 1970 to 1975. It is intended for crankshaft rebuilding as an alternative to replacing the complete crankshaft, and includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers. The kit is manufactured using heavy duty forged steel and modern production methods for OEM-equivalent fitment and performance.

Features

• Replacement connecting rod kit for vintage Kawasaki dirt bike engines
• Intended for crankshaft rebuilding
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers
• Newly manufactured replacement assembly
• Produced using modern materials and manufacturing techniques
• OEM-equivalent fitment and performance
• Connecting rod dimensions and measurements are available online with product images

Specifications

• VintCo Part Number: KR2060
• Connecting rod material: heavy duty forged steel
• Connecting rod quantity: 1
• Crank pin quantity: 1
• Crank pin size: 4 x 25 x 61.8 mm
• Big end bearing quantity: 1
• Big end bearing size: 25 x 34 x 17.8 mm
• Wrist pin bearing quantity: 1
• Wrist pin bearing size: 18 x 22 x 23.8 mm
• Thrust washer quantity: 2
• Thrust washer size: 25.25 x 40 x 1.0 mm

Vehicle Fitments

• 1970 Kawasaki F5 350 Bighorn
• 1971 Kawasaki F5 350 Bighorn
• 1971 Kawasaki F8 250 Bison
• 1972 Kawasaki F8 250 Bison
• 1972 Kawasaki F9 350 Bighorn
• 1973 Kawasaki F9 350 Bighorn
• 1974 Kawasaki F9 350 Bighorn
• 1975 Kawasaki F9 350 Bighorn
