Connecting Rod Kit 69-81 Suzuki Ds Rl Tm Ts 250 Vintco KR2066

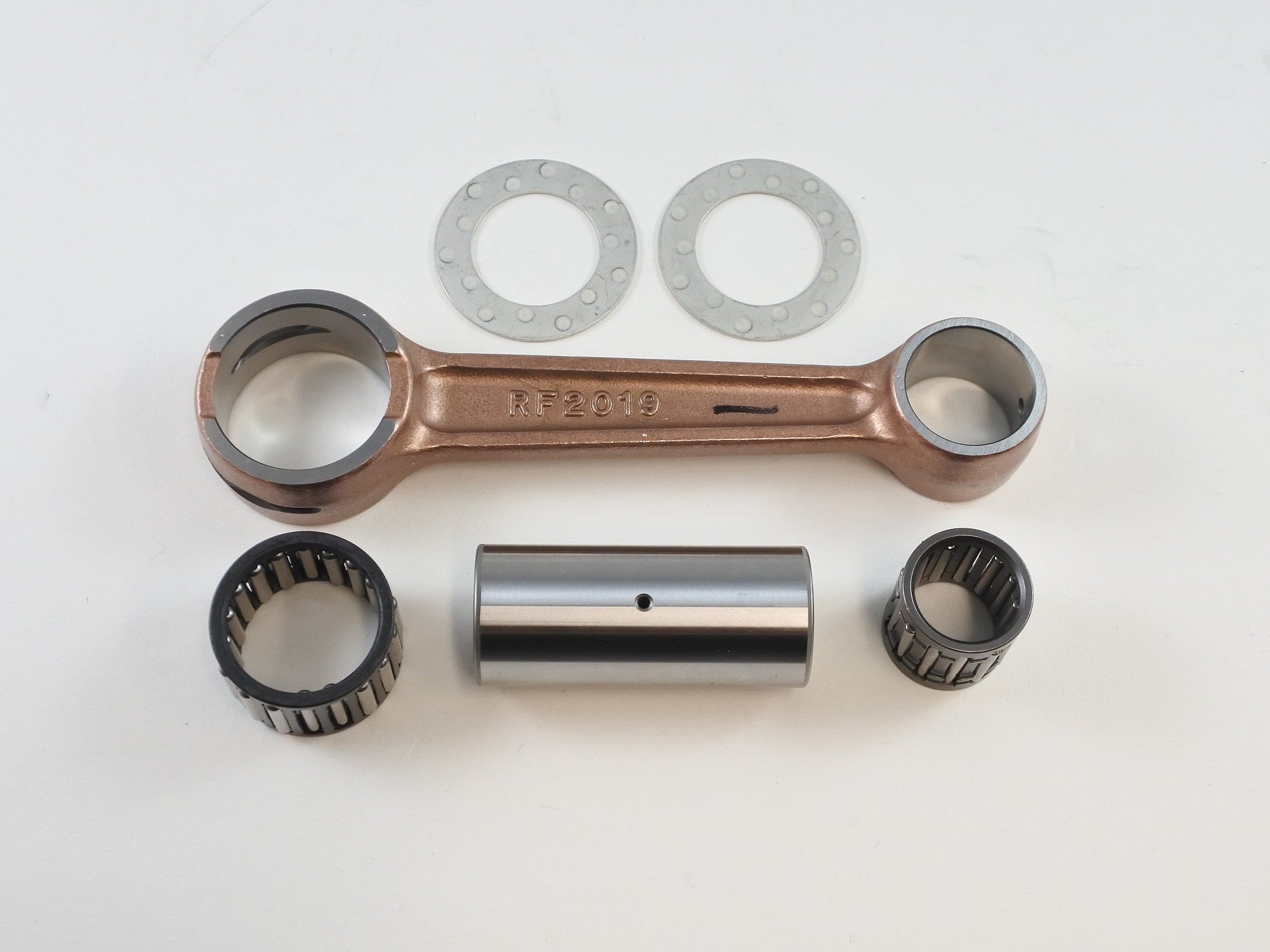

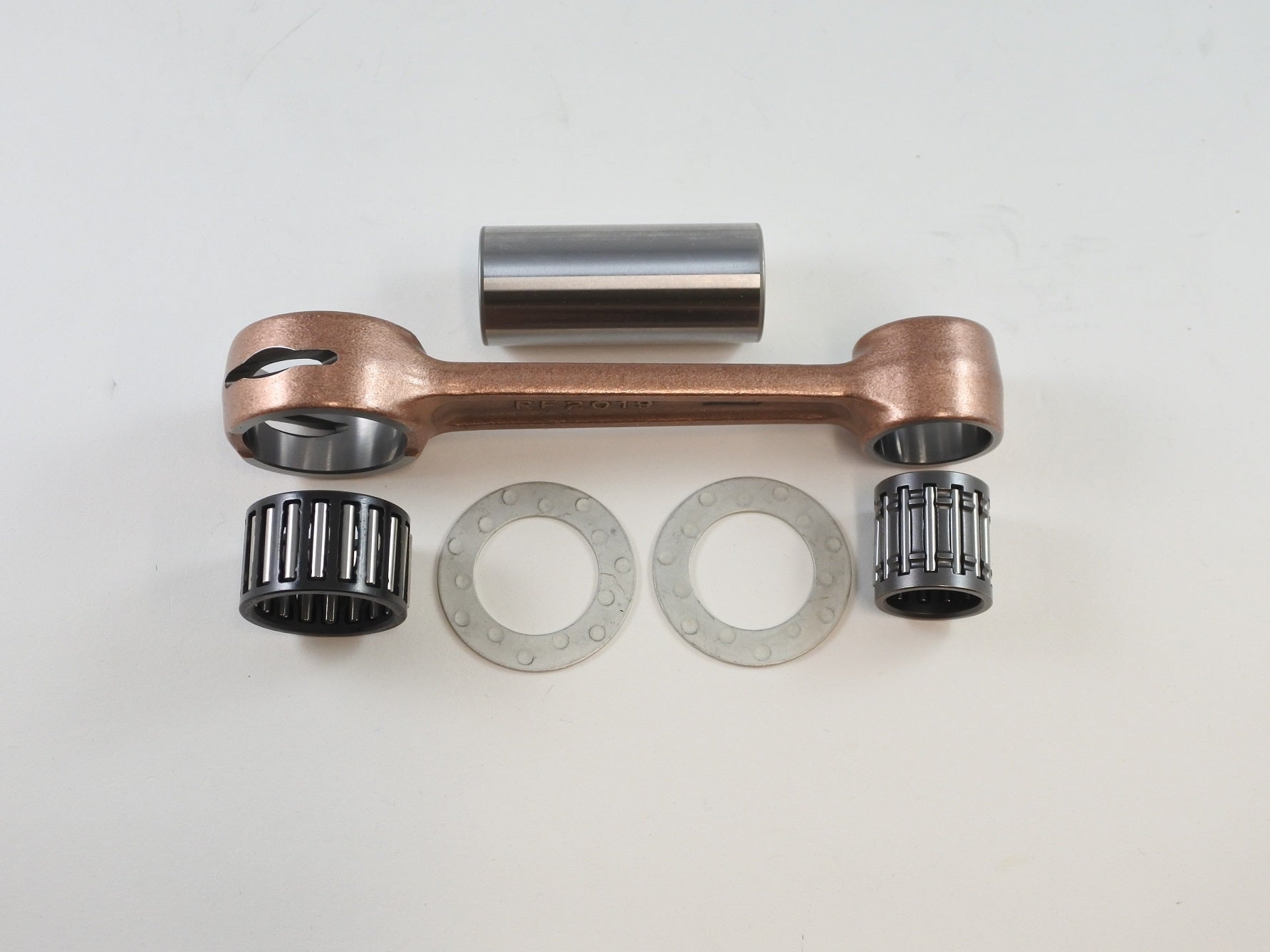

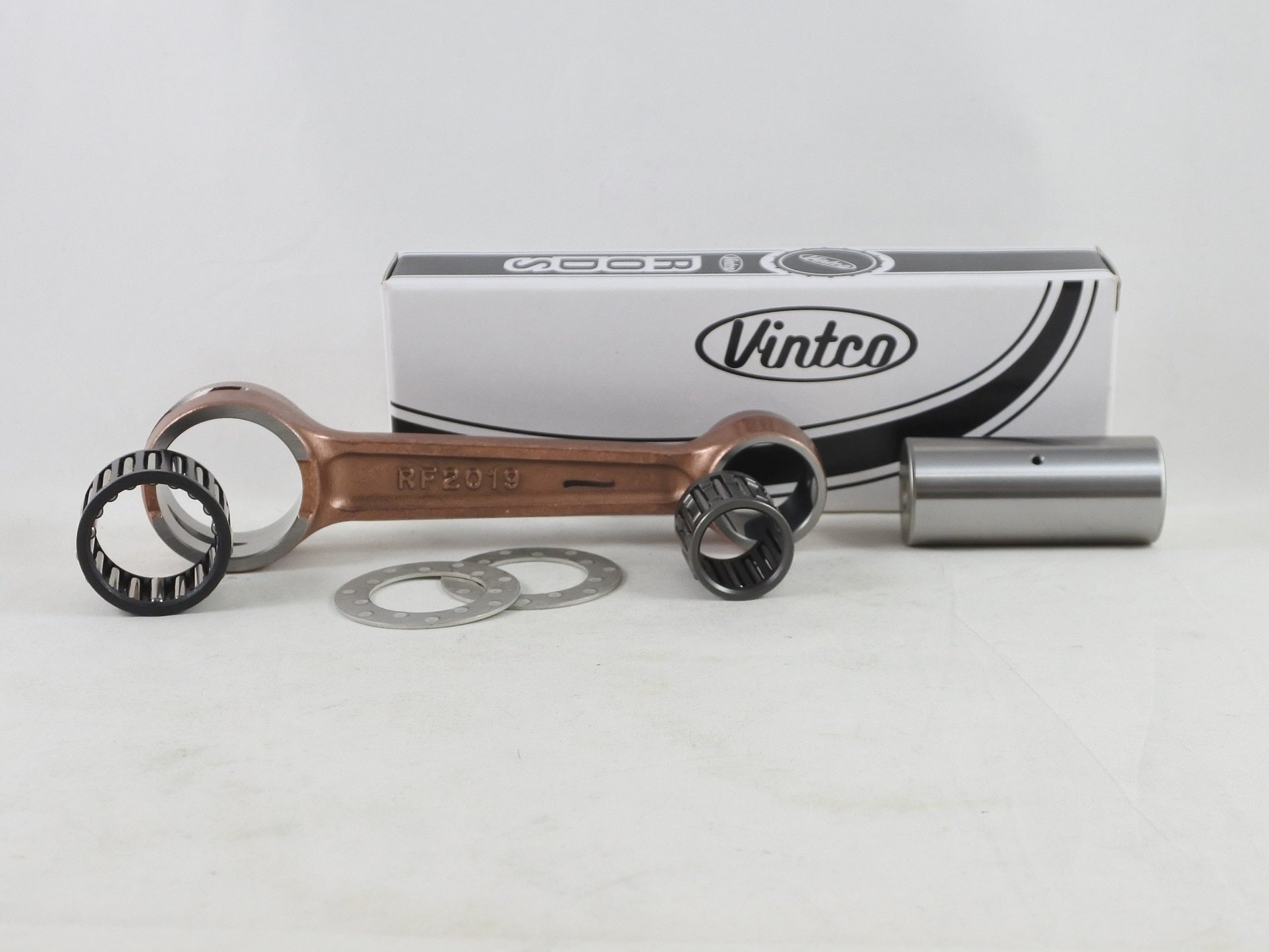

This connecting rod kit is designed for Suzuki 250 cc two-stroke models from 1969 to 1981, including DS250, RL250, TM250 and TS250 applications. It includes the connecting rod and the associated crankshaft and small-end components required for connecting rod service or rebuild work.

Features

• Heavy-duty connecting rod kit
• Suitable for connecting rod replacement and crankshaft rebuild work
• Includes 1 connecting rod
• Includes 1 crank pin
• Includes 1 crank pin bearing
• Includes 2 thrust washers
• Includes 1 wrist pin bearing

Specifications

• VintCo Part Number: KR2066
• Connecting rod material: forged steel
• Crank pin size: 7 x 25 x 58 mm
• Crank pin bearing size: 25 x 32 x 19.8 mm
• Thrust washer size: 25.25 x 40 x 1.0 mm
• Wrist pin bearing size: 18 x 23 x 23.58 mm

Vehicle Fitments

• 1969 Suzuki TS250
• 1970 Suzuki TS250
• 1971 Suzuki TS250
• 1972 Suzuki TM250
• 1972 Suzuki TS250
• 1973 Suzuki TM250
• 1973 Suzuki TS250
• 1974 Suzuki TM250
• 1974 Suzuki RL250
• 1974 Suzuki TS250
• 1975 Suzuki TM250
• 1975 Suzuki RL250
• 1975 Suzuki TS250
• 1976 Suzuki TS250
• 1977 Suzuki TS250
• 1978 Suzuki TS250
• 1979 Suzuki TS250
• 1980 Suzuki DS250
• 1980 Suzuki TS250
• 1981 Suzuki TS250
