Connecting Rod Kit 69-81 Suzuki a RM 100 125 Vintco KR2057

VintCo KR2057 is a newly manufactured connecting rod kit for vintage Suzuki dirt bikes, intended for crankshaft rebuilds as an alternative to replacing the complete crankshaft. It is designed to fit 1969-1977 Suzuki A100, 1979-1981 Suzuki RM100, and 1979-1980 Suzuki RM125 models. Manufactured using modern materials and production techniques, it is intended to provide OEM-equivalent fitment and performance. Connecting rod dimensions and measurements are available online with images.

Features

• Replacement connecting rod kit for vintage Suzuki dirt bikes
• Suitable for crankshaft rebuild applications

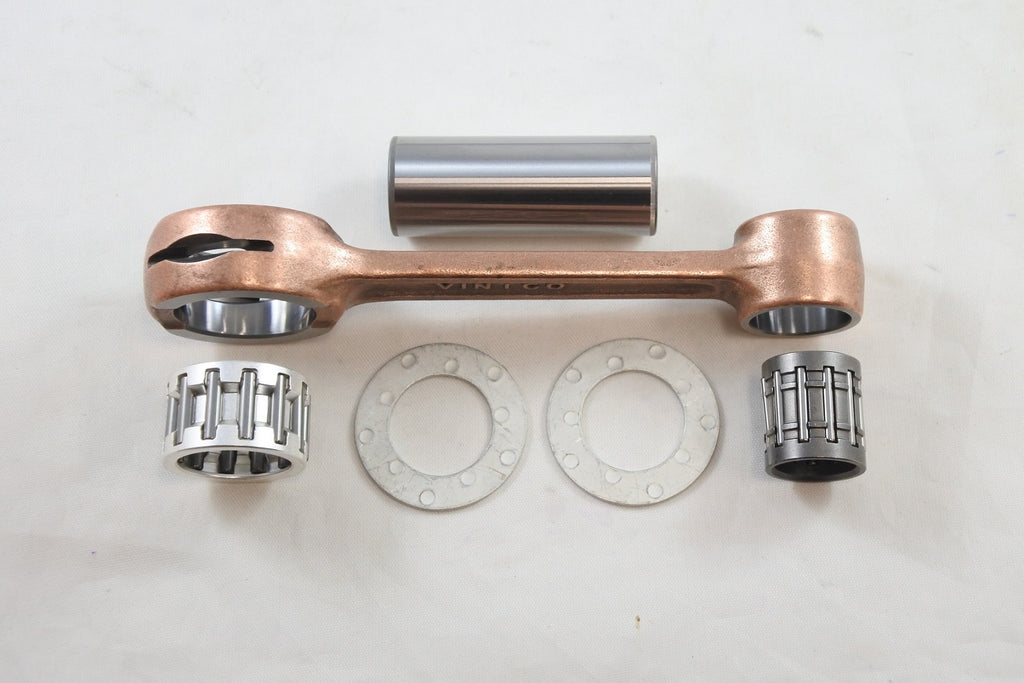

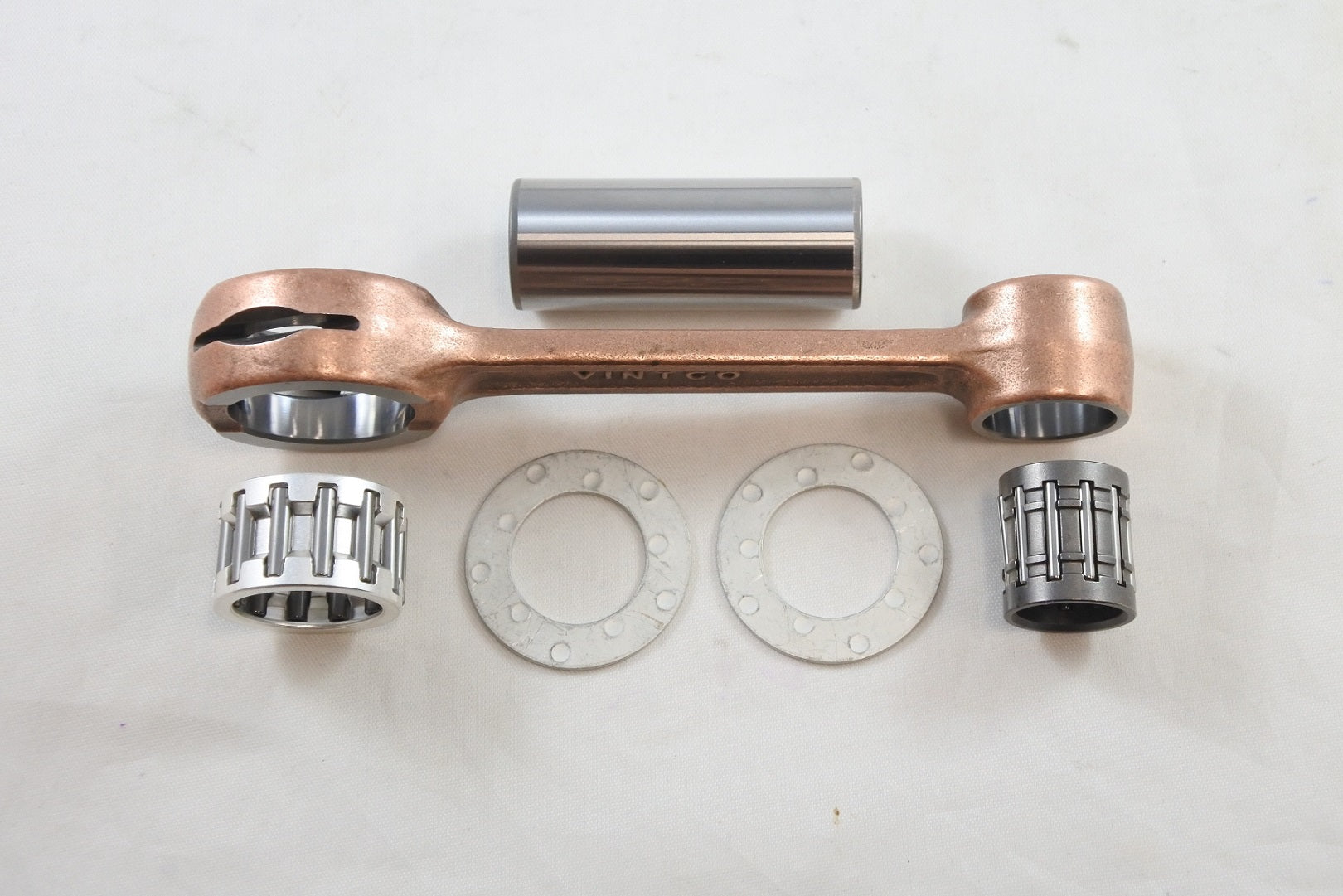

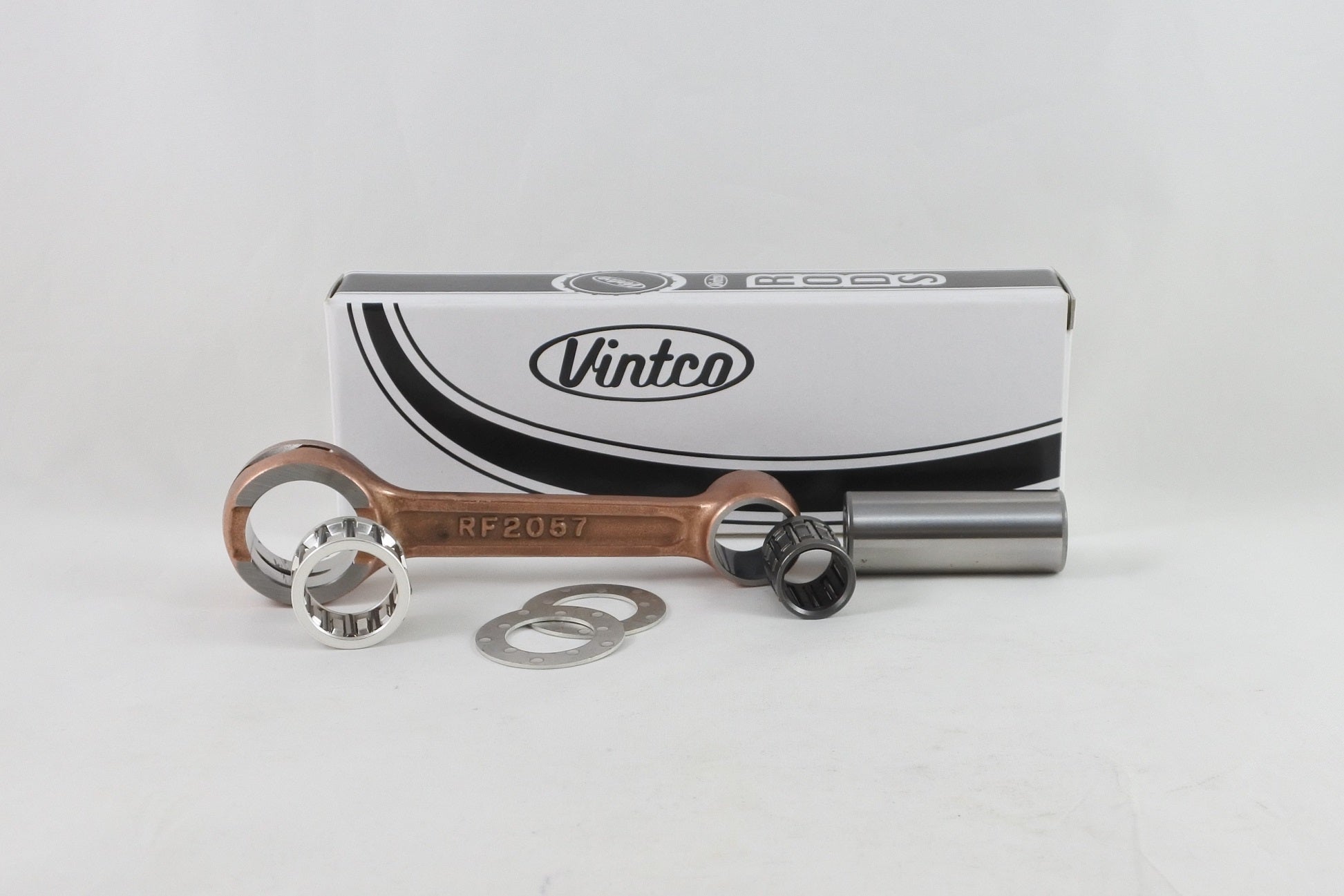

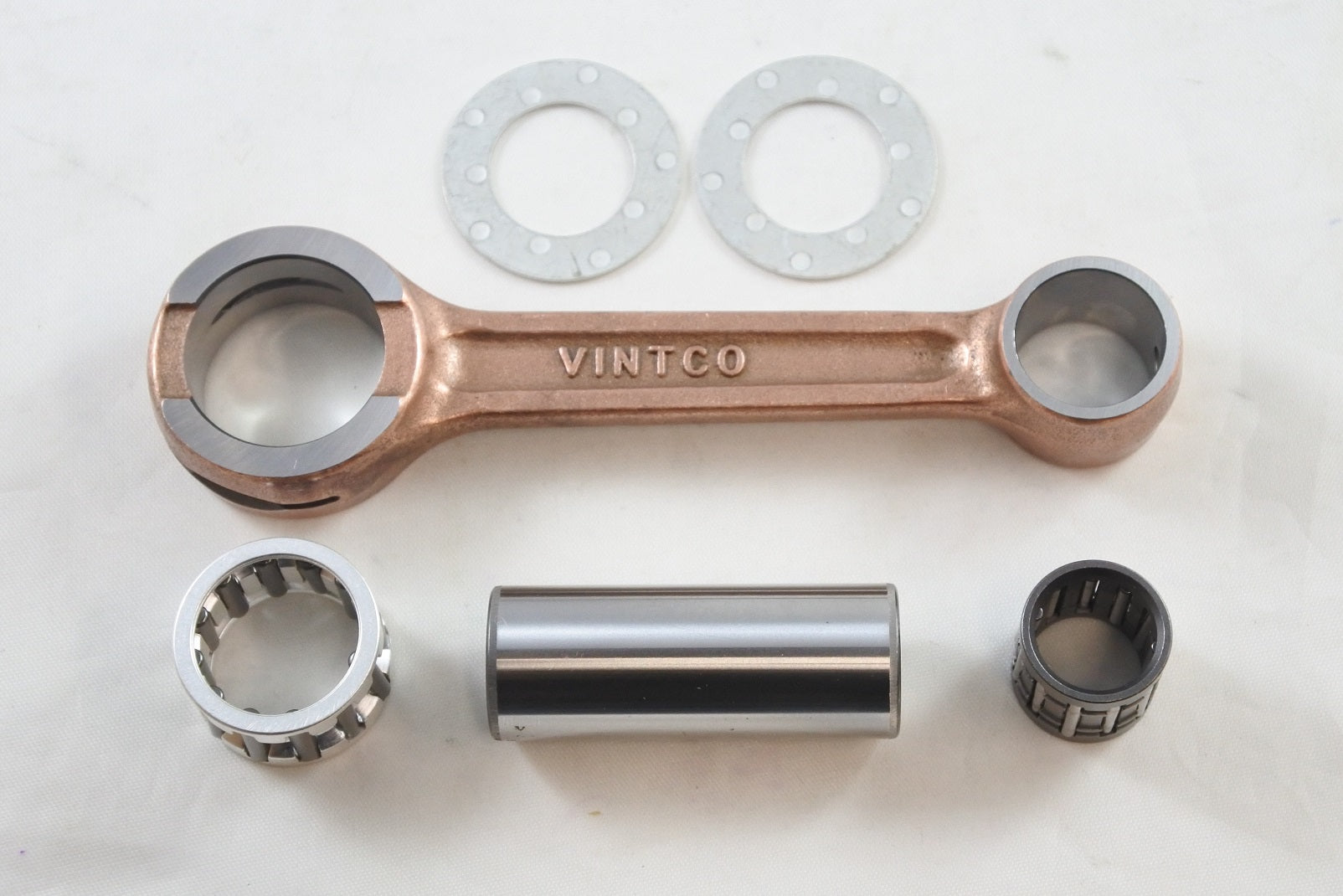

• Complete kit with connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers
• Intended to provide OEM-equivalent fitment and performance

Specifications

• VintCo Part Number: KR2057
• Connecting Rod Material: Heavy duty forged steel
• Connecting Rod: 1 included
• Crank Pin: 1 included, 7.2 x 19 x 49.8 mm
• Big End Bearing: 1 included, 19 x 25 x 15.8 mm
• Wrist Pin Bearing: 1 included, 14 x 18 x 19.8 mm
• Thrust Washers: 2 included, 19.2 x 32 x 1 mm

Vehicle Fitments

• 1969 Suzuki A100
• 1970 Suzuki A100
• 1971 Suzuki A100
• 1972 Suzuki A100
• 1973 Suzuki A100
• 1974 Suzuki A100
• 1975 Suzuki A100
• 1976 Suzuki A100
• 1977 Suzuki A100
• 1979 Suzuki RM125
• 1979 Suzuki RM100
• 1980 Suzuki RM125
• 1980 Suzuki RM100
• 1981 Suzuki RM100
