Connecting Rod 2001-2018 KTM Husqvarna TC SX 50 Pro

Heavy-duty connecting rod rebuild kit compatible with KTM 50 SX, Husqvarna TC 50, and GasGas MC 50 models. Designed to meet or exceed OEM specifications, this kit is manufactured using high-strength materials for reliable performance. Suitable for use with OE crankshafts, the kit includes all necessary components for a complete rod assembly.

Features:

• Strategically designed big end with scalloping and vent slots to reduce high-rpm bearing distortion
• Crankpins made from hot-rolled ASTM 4115, case-hardened to 58-62 Rc
• Caged needle roller bearings for improved durability at high rpm

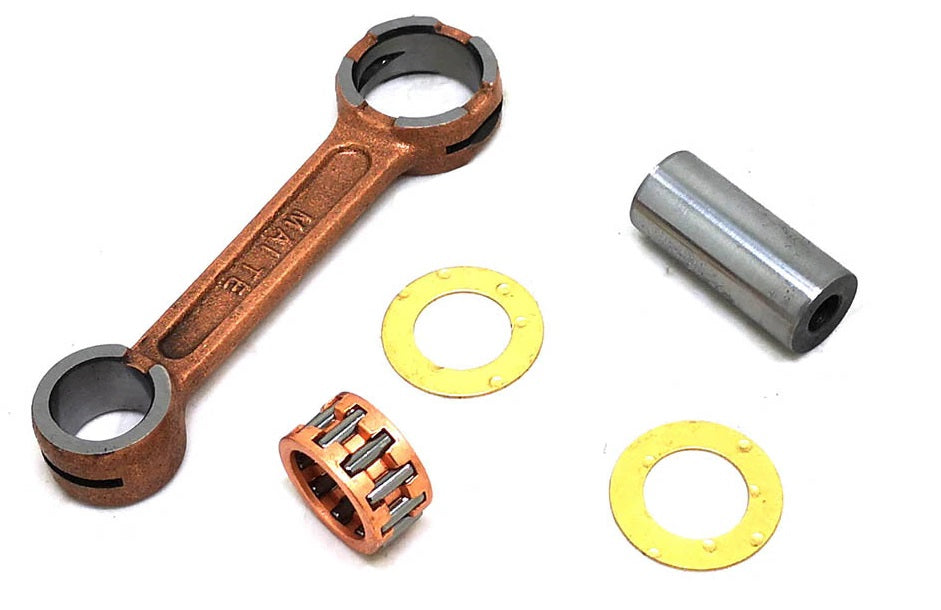

• Includes connecting rod, crankpin, crankpin bearing, needle bearings, top-end bearing, and thrust washers
• Direct OEM replacement
• Factory tested for reliability

Specifications (aprox):

• Big End Bearing: 16x22x11.75 mm
• Big End Bore: 22.00 mm
• Big End Width: 11.80 mm
• Centre to Centre: 85.00 mm
• Pin Diameter: 16.00 mm
• Pin Length: 36.00 mm
• Small End Bore: 15.00 mm
• Washer Thickness: 0.85 mm

Cross-Reference OEM Part Numbers:

• MX-09075
• HOTRODS 8135
• WOSSNER P2053
• PROX 03.6011
• 45230015000
• P2053

Vehicle Fitments:

• KTM 50 SX (2001–2025)
• KTM 50 SX Mini (2014–2017)
• KTM 50 SX Pro Jr (2006–2008)
• KTM 50 SX Pro Junior LC (2004–2005)
• KTM 50 SX Pro Sr (2004–2005)
• Husqvarna TC 50 (2017–2025)
• GasGas MC 50 (2021–2025)
