Coil Ignition with Cap 00-73 Suzuki Yamaha Dt Rt 100 Rd 60 255-82310-40 33410-430010

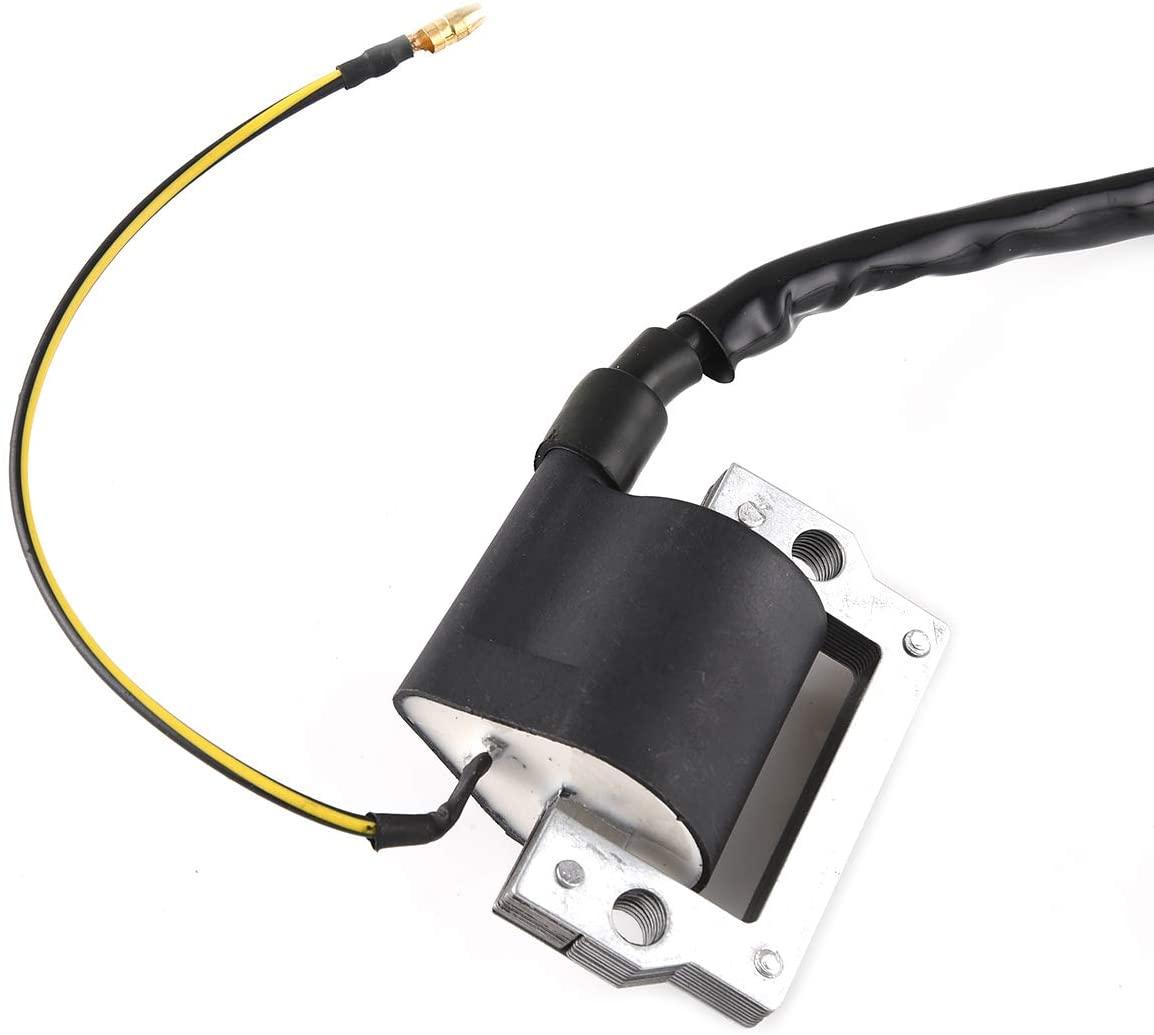

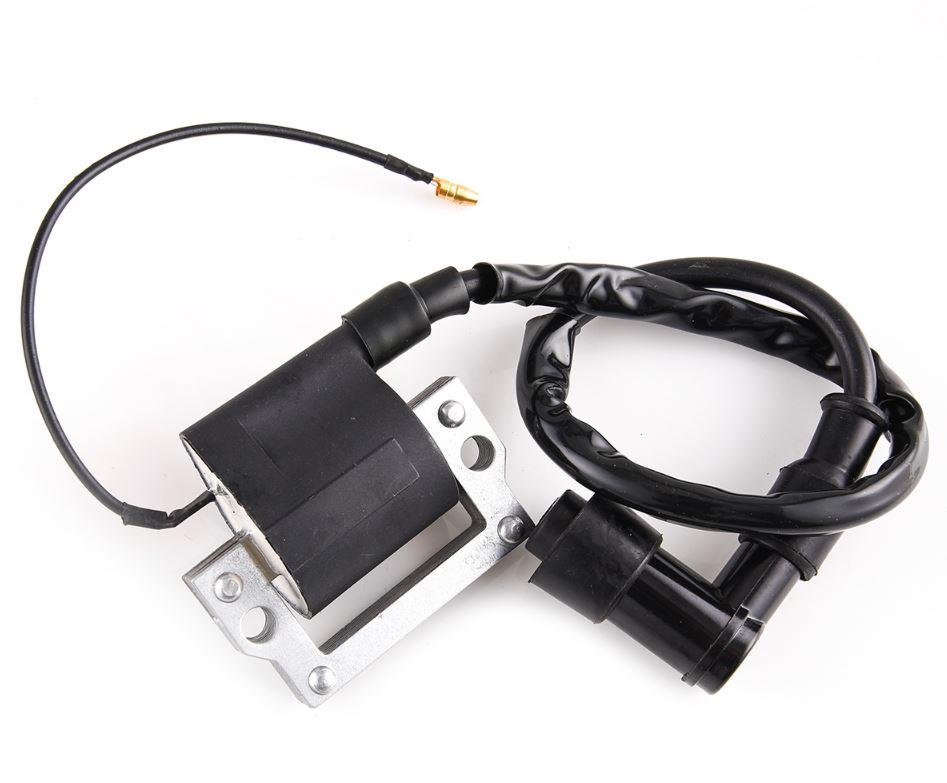

This 6V ignition coil is designed for use with magneto ignition systems utilizing a single-wire external high-tension (HT) coil. Commonly fitted to a wide range of 1970s and 1980s Yamaha and Suzuki motorcycles and mopeds, it supports both contact breaker point and certain CDI/magneto configurations. The coil features dual mounting holes with a 55mm center-to-center spacing, making it a direct-fit replacement for many factory coils.

Features

• 6V universal ignition coil for use with magneto systems
• One-wire output with two mounting holes

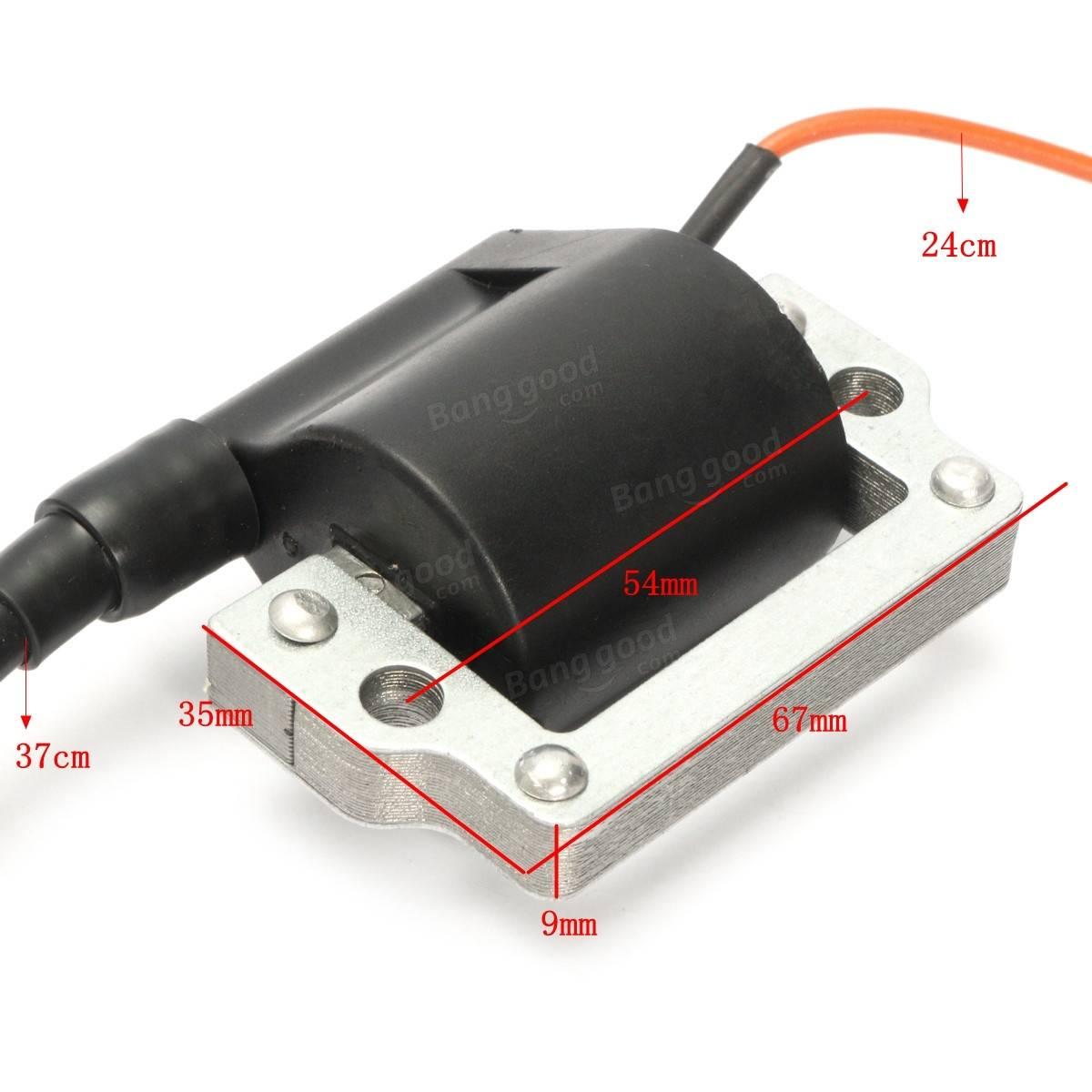

• Hole center-to-center distance: 55mm
• Direct OEM replacement
• Factory tested for reliability

Specifications

• Voltage: 6V
• Ignition type: Magneto 6V, single-wire external coil (used on points systems and on some CDI/magneto models). Confirm by OEM P/N.
• Number of outputs: 1
• Number of mounting holes: 2
• Number of terminals: 1
• Mounting hole pitch: 55mm

Cross-Reference OEM Part Numbers

• Yamaha: 355-82310-40 (primary reference)
• Yamaha: 5G4-82310-40
• Yamaha: 4V5-82310-40
• Yamaha: 5X6-82310-40
• Yamaha: 1Y8-82310-40
• Yamaha: 1M2-82310-40
• Yamaha: 1W2-82310-40
• Yamaha: 439-82310-40
• Yamaha: 255-82310-40 (aftermarket reference)
• Yamaha: 5X1-82310-40, 5X1-82310-41
• Yamaha: 2A3-82310-30
• Yamaha: 367-82310-30
• Yamaha: 860-82310-40
• Suzuki: 33410-43010 (superseded by 33410-43011)

Vehicle Fitments

• Yamaha FS1E (points models only)
• Yamaha YB50
• Yamaha LB50/Chappy (1980–1982)
• Yamaha LB80 (1976–1978)
• Yamaha DT50 (1979–1986)
• Yamaha DT80 (1981–1983)
• Yamaha DT100 (1973–1983)
• Yamaha DT125 incl. DT125MX (1978–1981)
• Yamaha DT175 (1978–1981)
• Yamaha DT250 (1975–1979)
• Yamaha DT400 (1975–1978)
• Yamaha RS100
• Yamaha RX100 (1986)
• Yamaha TY250 (1974–1977)
• Yamaha XT250 (1981–1983)
• Yamaha IT125 (1980–1981)
• Yamaha IT175 (1977–1983)
• Yamaha IT250 (1977–1982)
• Yamaha IT400 (1977–1979)
• Yamaha IT425 (1980)
• Yamaha IT465 (1981–1982)
• Yamaha MX100 (1979–1981)
• Yamaha MX125 (1976)
• Yamaha MX175 (1979–1981)
• Yamaha MX400 (1975)
• Yamaha YZ50 (1980)
• Yamaha YZ60 (1981–1983)
• Yamaha YZ80 (1977–1982)
• Yamaha YZ100 (1977–1979)
• Yamaha YZ125 (1977–1982)
• Yamaha YZ250 (1976–1982)
• Yamaha YZ400 (1976–1979)
• Yamaha YZ465 (1980–1981)
• Yamaha YZ490 (1982)
• Yamaha YT125 (1980–1985)
• Yamaha YT175 (1982–1983)
• Yamaha TT250 (1980–1982)
• Yamaha TZ125 (1980)
• Yamaha TZ250 (1979–1982)
• Yamaha RT100 (1990–1997, 1999–2000)
• Suzuki TS50 (models using 33410-43010 or 33410-43011 coil)
