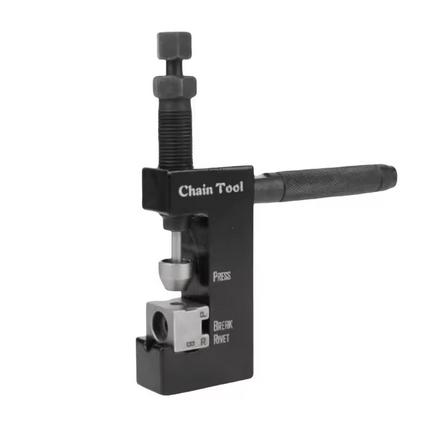

CHAIN BREAKER PRESS RIVETER 520-530 08-0470

This motorcycle chain breaker and riveting tool is a universal chain service tool for 520, 525 and 530 chains. It is designed to remove chain pins, press master-link plates, and rivet hollow nose and soft nose master link pins on both O-ring and non-O-ring chains. The tool uses a movable anvil block to change functions, with indexing letters on the anvil and body to ensure the correct configuration. It is constructed from steel with heat-treated components and is supplied in a protective plastic case with its components stored on the tool when not in use.

Features

• Universal chain tool for 520, 525 and 530 chains
• Presses, breaks and rivets chains with one tool
• Removes chain pins
• Presses master-link plates
• Rivets hollow nose and soft nose master link pins
• Suitable for O-ring and non-O-ring type chains
• Tool functions are changed by moving the position of the anvil block
• Indexing letters on the movable anvil and body indicate the correct tool configuration
• Components store on the tool when not in use
• Includes a protective plastic case for storage of the tool and its components
• May be supported in a vice or held with the included handle
• Compact and light enough to carry in a tool bag for trail-side repairs
• Includes spare pin
• Includes 1 motorcycle chain breaker tool
• Covered by a limited one-year warranty against defects in workmanship and materials
• Patented design

Specifications

• Chain compatibility: 520, 525, 530
• Construction: all steel
• Components: heat-treated

Cross-Reference OEM Part Numbers

• 08-0470
