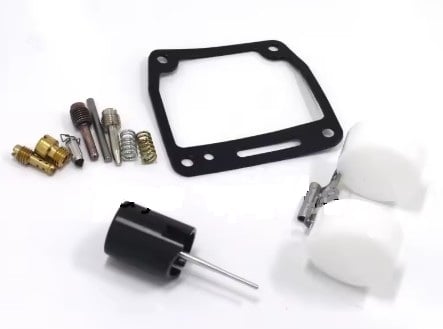

Carburettor Repair Kit 1983- 2006 Yamaha PW80 Y-Zinger

This carburettor repair gasket kit is designed for Yamaha PW80 models from 1983 to 2006, providing all necessary components for a comprehensive carburettor rebuild.

Features:

• Includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle, and seat
• OEM jet sizes are included in the kit
• Components are made from NBR rubber material, offering excellent resistance to ethanol used in today's fuels
• Applications that use paper float bowl gaskets are upgraded to high-performance interface gasket material

Specifications:

• Compatible with Yamaha PW80 models from 1983 to 2006
• Designed to meet or exceed OEM specifications

Vehicle Fitments:

• Yamaha PW80 Y-Zinger (1983-2006)

Cross reference numbers.

• Gasket, Float Chamber 296-14184-01-00
• Needle Set 21W-1490J-00-00
• Air Screw Set 12G-14104-00-00 36R-14104-00-00
• Throttle Screw Set 12G-14103-00-00
• Jet, Pilot (# 15) 193-14142-15-A0
• Pin, Float 127-14186-00-00
• Float 2E9-14185-00-00
• Jet, Main (#125) UR STD 127-14143-25-00
• Needle Valve Set 21W-14107-12-00
• Note. Some Jets Sizes Might Differ
