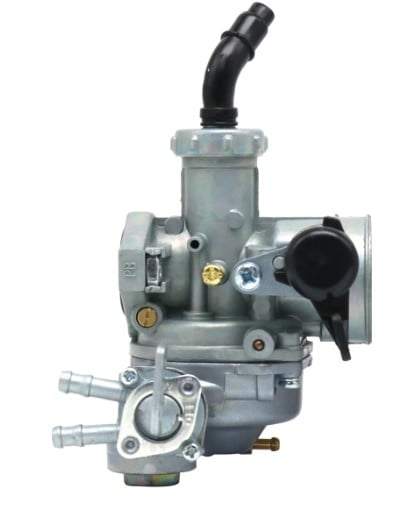

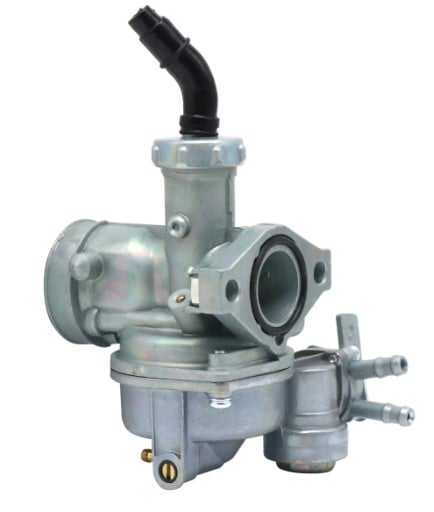

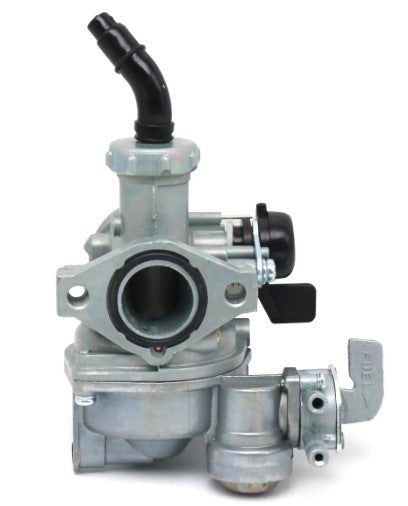

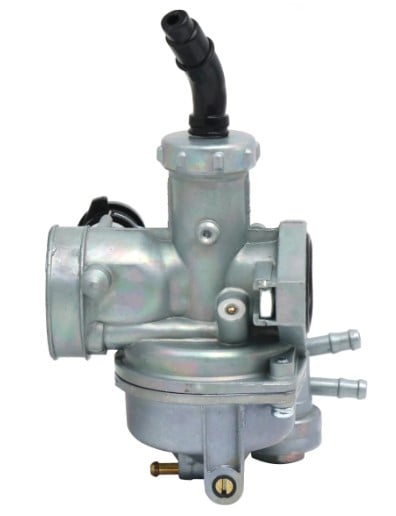

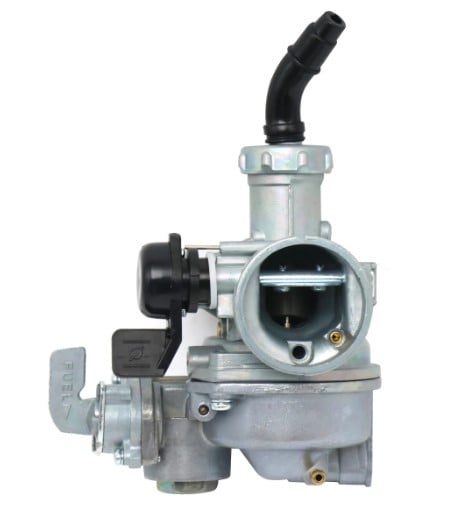

Carburettor PZ22 Manual Choke 1979-1980 Honda ATC110 ATC125 ATC90 TRX90 CT90

This PZ22 carburettor with manual choke is built from high-tech materials and manufactured to strict specifications, ensuring compatibility with a wide range of Honda engines. It offers a direct OEM replacement and supports reliable engine performance. Proper sizing and port locations must be confirmed using the reference image before purchasing.

Features:

• Constructed from high-tech materials for reliability and performance
• Manufactured to precise standards for dependable engine operation
• Meets or exceeds OEM quality
• Direct OEM replacement
• Refer to product image before ordering to ensure correct fitment
• Designed for value and consistent performance
• Simple to install; professional installation recommended if unsure

Specifications:

• Intake Inner Diameter: 7/8” (22mm)
• Air Filter Mount Inner Diameter: 1-7/16” (36.5mm)
• Air Filter Mount Outer Diameter: 1-5/8” (41mm)
• Bolt Hole Spacing Diameter: 1-7/8” (48mm)
• Petcock and choke located on the left side

Cross-Reference OEM Part Numbers:

• 16010-459-711 (Gasket Set)
• 16010-943-305 (Gasket Set)
• 16012-459-004 (Needle Set, Jet)
• 16013-883-005 (Float Set)
• 16014-KN4-651 (Top Set)
• 16015-126-852 (Chamber Set, Float)
• 16016-459-711 (Screw Set A)
• 16022-KG8-911
• 16022-459-004 (Valve Set, Throttle)
• 16028-GC8-004 (Screw Set B)
• 16110-KN4-651 (Gasket, Top)
• 16148-141-881
• 16148-943-003 (Cap, Choke Dust)
• 16155-883-005 (Valve, Float)
• 99101-116-0700 (Jet, Main #70)
• 99101-116-0720 (Jet, Main #72)
• 99103-459-0380 (Jet, Slow #38)

Vehicle Fitments:

• 1985-1986 Honda FourTrax 125 TRX125
• 1976-1978 Honda ATC70
• 1976-1978 Honda ATC90
• 1979-1985 Honda ATC110
• 1984-1985 Honda ATC125M
• 1966-1986 Honda CT90 Trail
• 1980-1981 Honda CT110 Trail
• 1986 Honda CT110 Trail
• 1993-2005 Honda RX90 Sportrax
