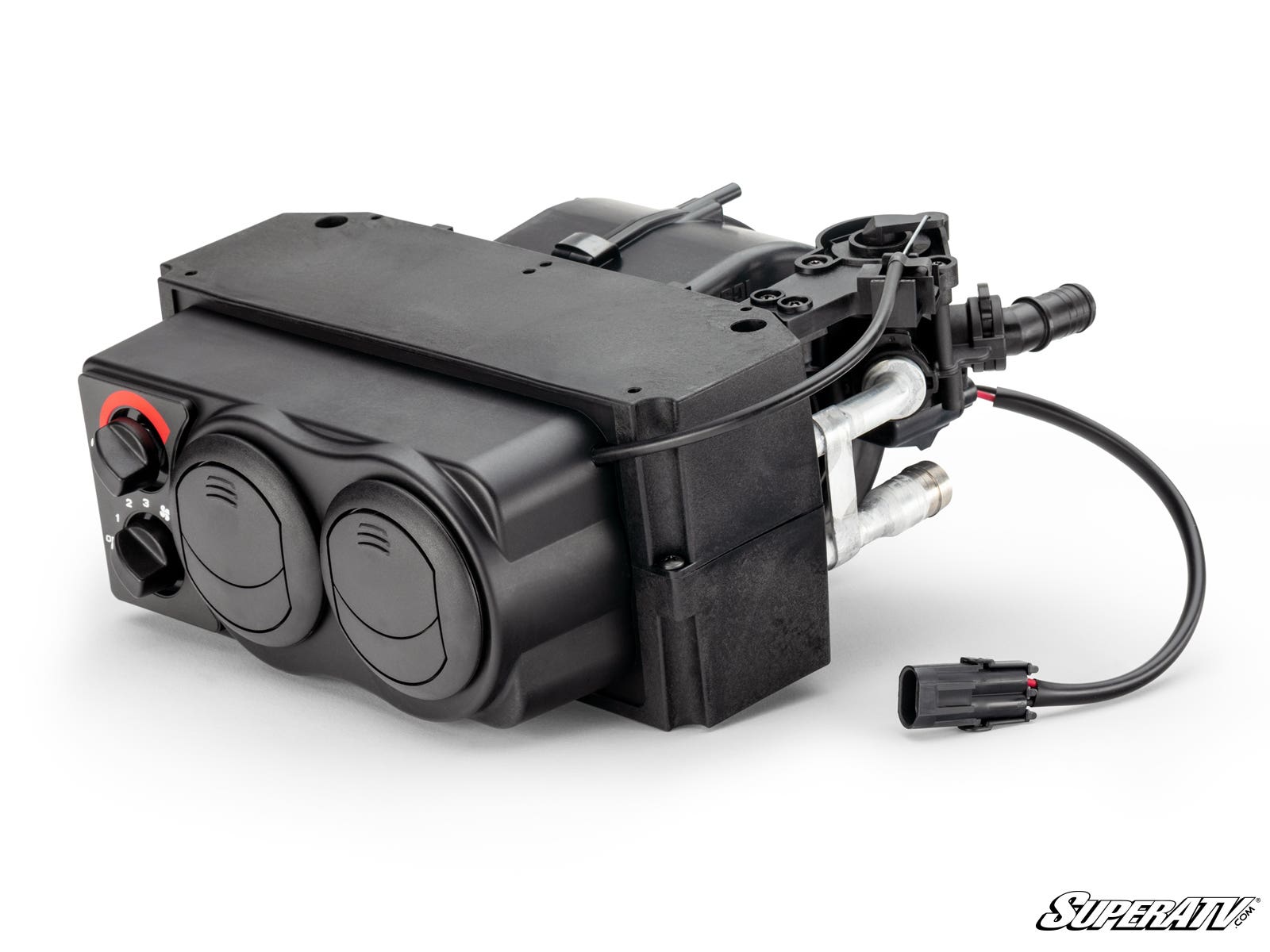

CANAM DEFENDER UNDER DASH CAB HEATER MATRIX BLOWER, SUPER ATV HTR-CA-DEF

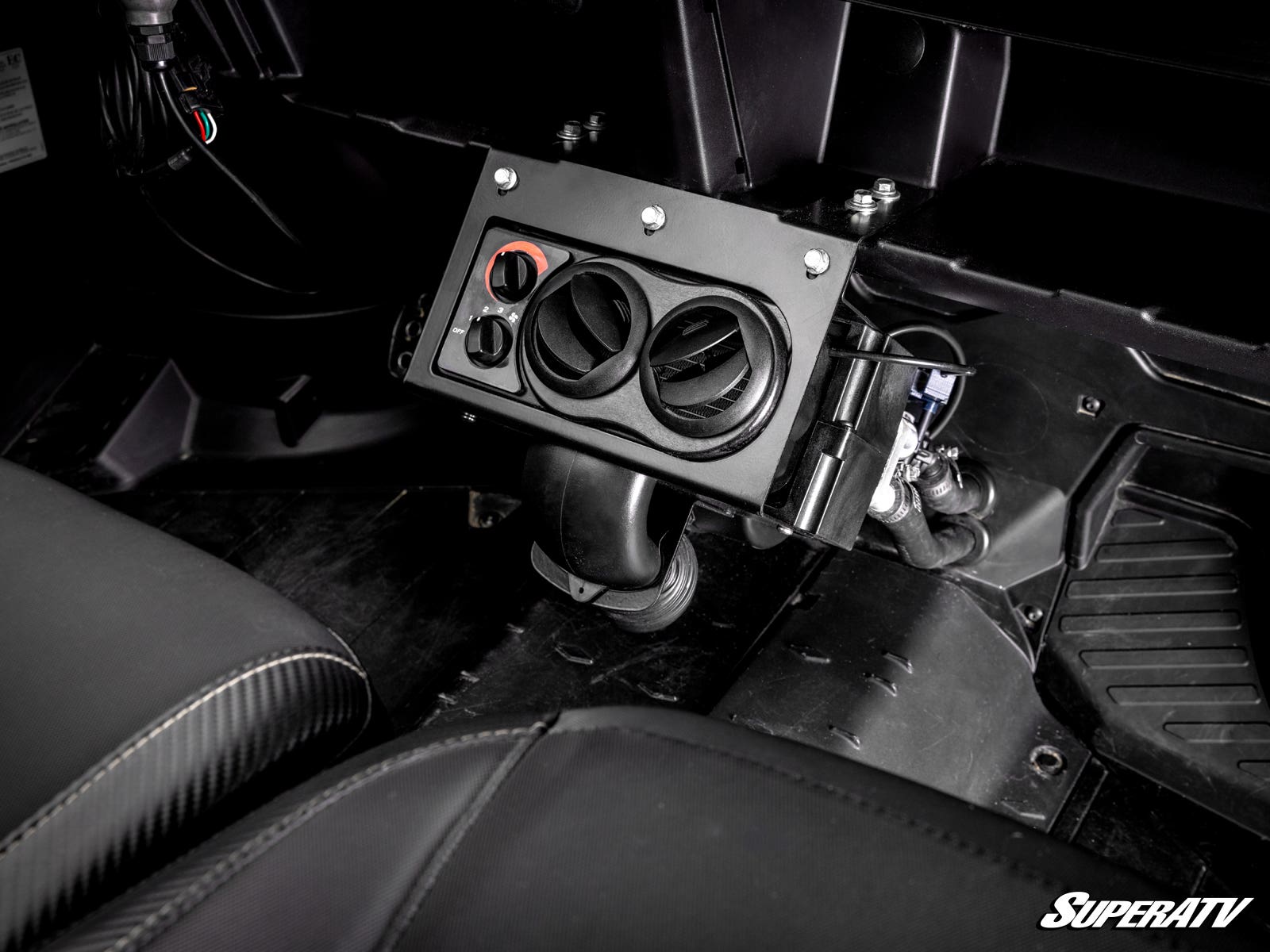

The under-dash cab heater matrix blower for Can-Am Defender Traxter (HTR-CA-DEF) provides controlled cabin heating with adjustable temperature and fan speeds, 360° adjustable vents, and integrated defrost provision. It mounts under the dash with a built-in shutoff valve and includes all required hardware and instructions. High-grade hoses support reliable operation, and optional accessories can be added to accelerate warm-up.

Features

• Adjustable temperature and fan speeds

• 360° adjustable vents

• Includes defrost hose and vent

• Built-in shutoff valve

• Easy install—includes all installation hardware and instructions

• Compatible with quick-start flow valve and idle flow pump to get heated air faster

Specifications

• Electrical draw: 3.4 amps at 13.7 volts

• Heating performance: up to 14,600 BTU at 135 CFM

• Hose rating: high-grade radiator hoses rated -40°F to 285°F

• Heater control box dimensions: 10" x 4.5" x 11.75"

• Installation note: drilling through plastic required; all necessary bits included

Vehicle Fitments

• Can-Am Defender/Traxter HD 5 DPS: 2017–2021

• Can-Am Defender/Traxter HD 7 DPS: 2022+

• Can-Am Defender/Traxter HD 8 DPS: 2016–2021

• Can-Am Defender/Traxter HD 8 XT: 2016–2021

• Can-Am Defender/Traxter HD 8 XT Cab: 2016–2021

• Can-Am Defender/Traxter HD 9 DPS: 2022+

• Can-Am Defender/Traxter HD 9 XT: 2022+

• Can-Am Defender/Traxter HD 9 DPS CAB: 2022+

• Can-Am Defender/Traxter HD 10 DPS: 2016+

• Can-Am Defender/Traxter HD 10 XT: 2016+

• Can-Am Defender/Traxter HD 10 XT Cab: 2016+

• Can-Am Defender/Traxter HD 10 XTP: 2018+

• Can-Am Defender/Traxter HD 10 Mossy Oak: 2018+

• Can-Am Defender/Traxter HD 10 XMR: 2018+

• Can-Am Defender/Traxter HD 10 6x6: 2020+

• Can-Am Defender/Traxter Limited HD 10: 2020+

• Can-Am Defender/Traxter Pro HD 10: 2020+

• Can-Am Defender/Traxter MAX HD 8 DPS: 2017–2021

• Can-Am Defender/Traxter MAX HD 8 XT: 2017–2021

• Can-Am Defender/Traxter MAX HD 8 XT Cab: 2017–2021

• Can-Am Defender/Traxter MAX HD 9 DPS: 2022+

• Can-Am Defender/Traxter MAX HD 9 XT: 2022+

• Can-Am Defender/Traxter MAX HD 10 DPS: 2017+

• Can-Am Defender/Traxter MAX HD 10 XT: 2017+

• Can-Am Defender/Traxter MAX HD 10 XT Cab: 2017+

• Can-Am Defender/Traxter MAX HD 10 XMR: 2019+

• Can-Am Defender/Traxter MAX HD 10 Lone Star Edition: 2018+

• Can-Am Defender/Traxter MAX HD 10 Limited: 2020+
