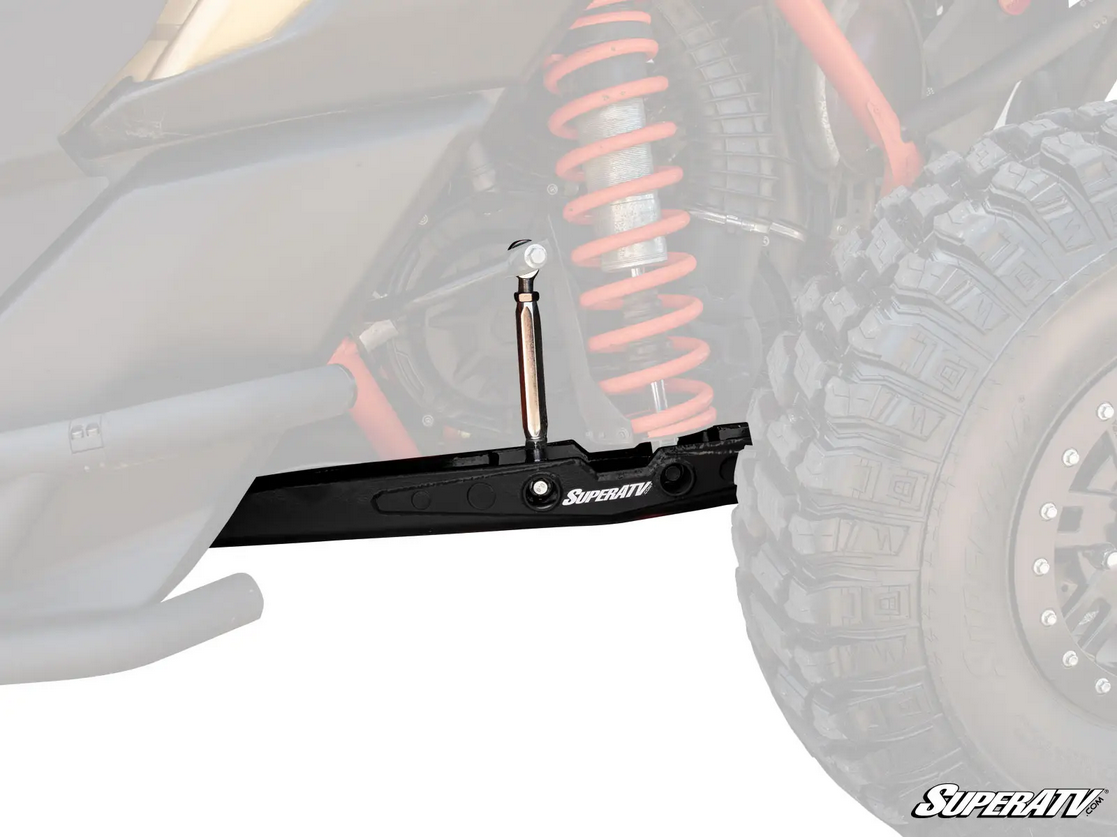

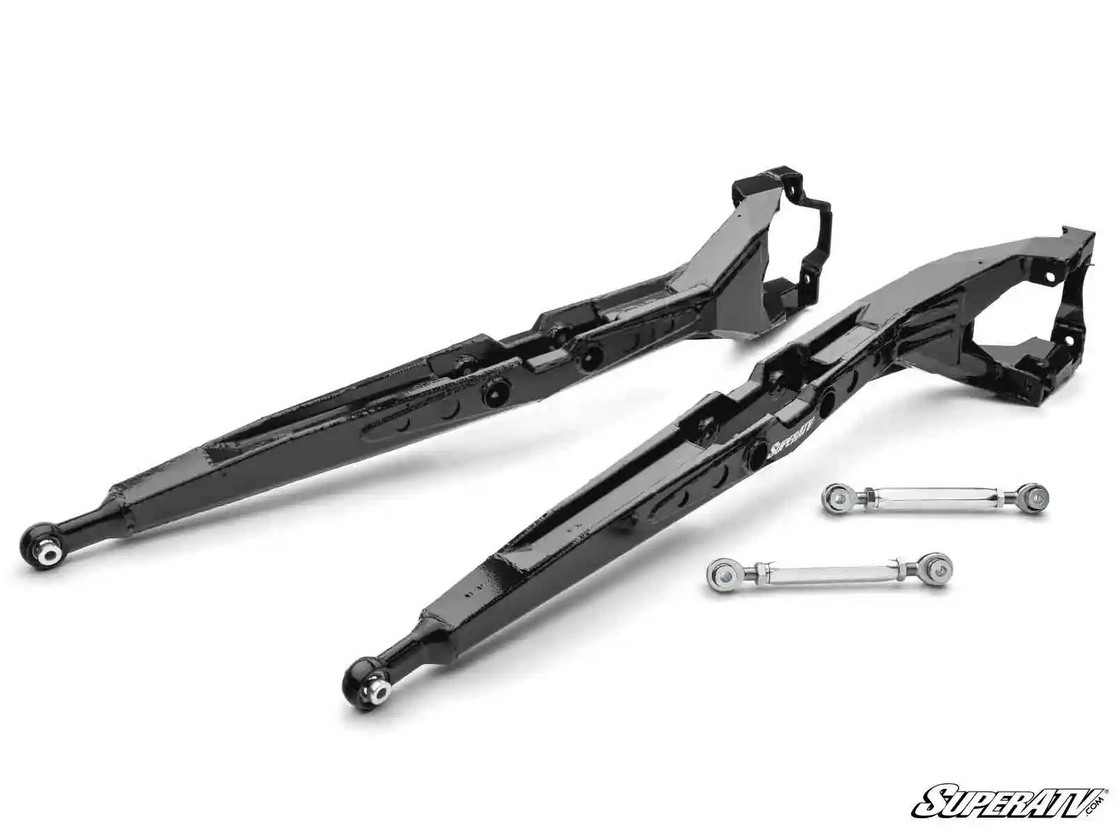

Can-Am Maverick X3RS 72" Smart Shox Trailing Arms, SUPER ATV, RTA-CA-X3RS-SS-02

These rear trailing arms are designed for 72 in Can-Am Maverick X3 models, including Smart-Shox variants, and provide reinforced suspension support for demanding use. Part number RTA-CA-X3RS-SS-02 features a centred mount design for the shock and sway bar links, includes hex billet sway bar links, maintains factory rear alignment, and works with OEM or aftermarket radius arms and axles. The arms are finished with a UV-resistant powder coat and include a lifetime warranty.

Features

• Rear trailing arms for 72 in Can-Am Maverick X3 models

• Suitable for heavy-duty use

• Centred shock and sway bar link mount design

• Includes hex billet sway bar links

• Maintains factory rear alignment

• Works with OEM or aftermarket radius arms and axles

• Distinctive non-standard appearance

• Lifetime warranty

Specifications

• Part number: RTA-CA-X3RS-SS-02

• Manufactured from 1/8 in heavy-duty steel plating

• Reinforced with internal and external gussets

• Steel construction with a higher strength-to-weight ratio than standard steel

• Zinc-plated bushings

• Hand-welded seams

• UV-resistant powder coat finish

Vehicle Fitments

• Can-Am Maverick X3 Turbo R RS (XRS) : 2017+

• Can-Am Maverick X3 Turbo RR XRS : 2020+

• Can-Am Maverick X3 Turbo RR X RS w/ Smart-Shox 72 : 2022+

• Can-Am Maverick X3 Turbo R XRC : 2018+

• Can-Am Maverick X3 Turbo RR XRC : 2020+

• Can-Am Maverick X3 Turbo R XMR : 2018+

• Can-Am Maverick X3 Turbo RR XMR : 2020+

• Can-Am Maverick X3 MAX Turbo R RS (XRS) : 2017+

• Can-Am Maverick X3 MAX Turbo RR XRS : 2020+

• Can-Am Maverick X3 MAX Turbo RR X RS w/ Smart-Shox 72 : 2022+

• Can-Am Maverick X3 MAX Turbo RR XMR : 2020+
