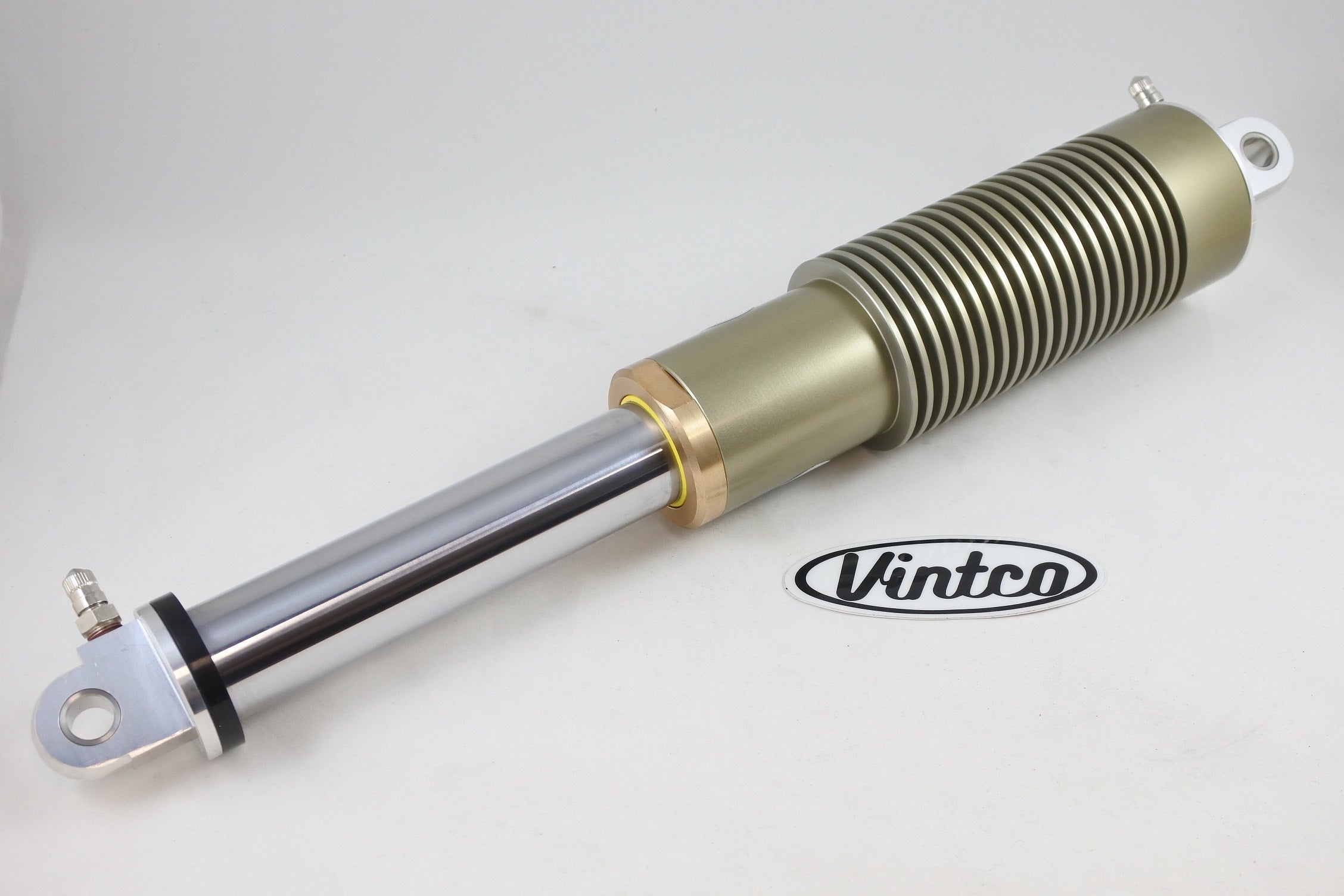

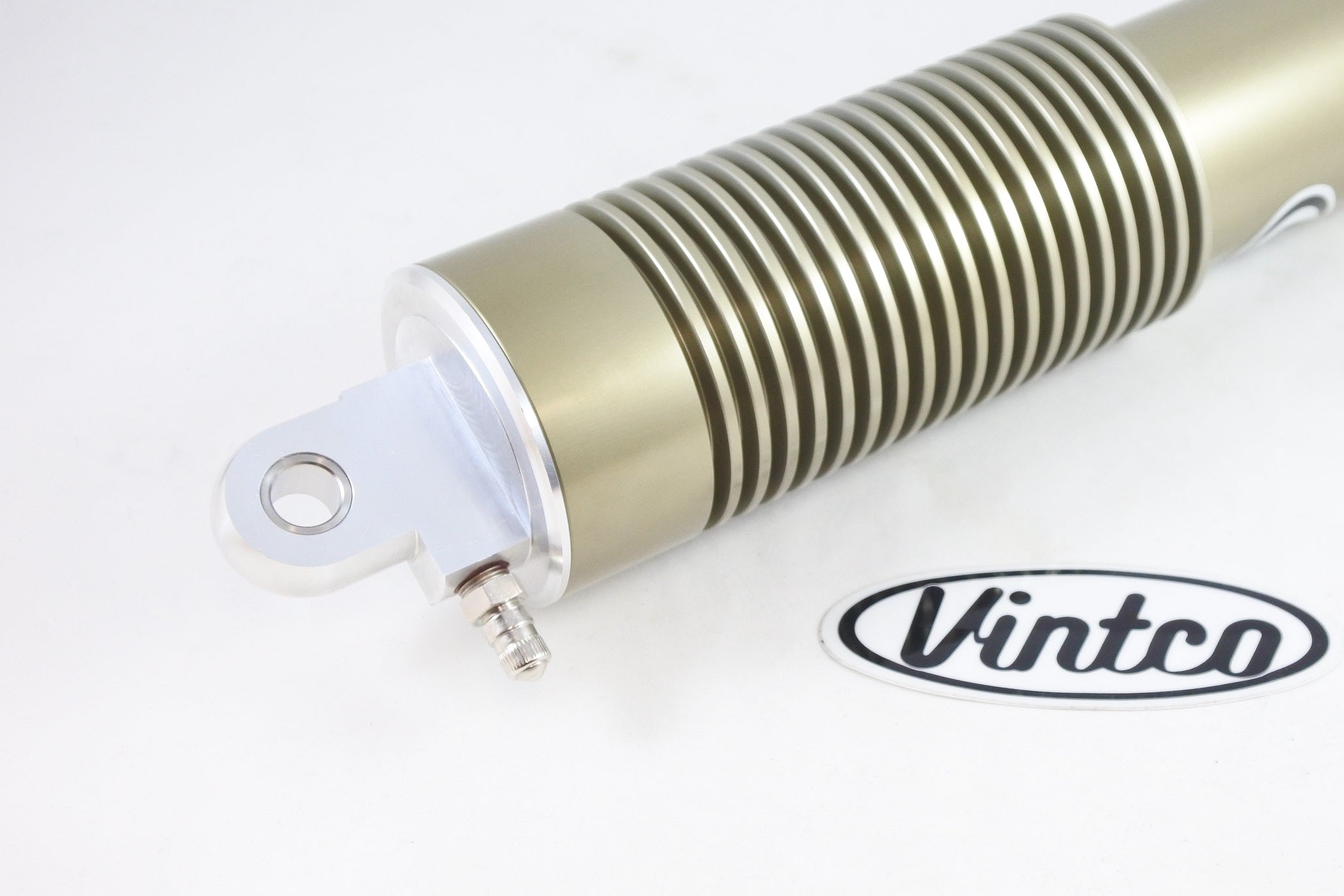

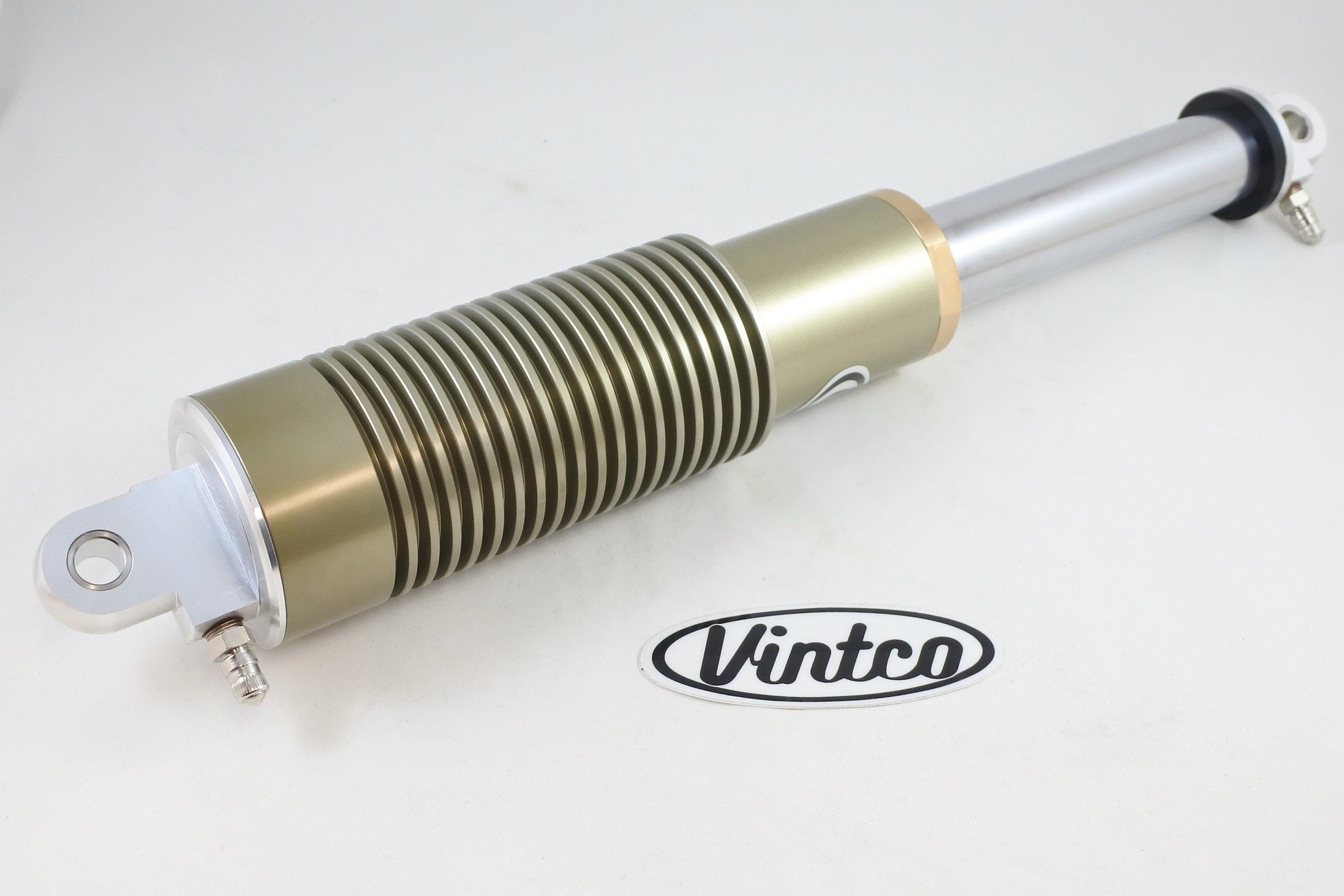

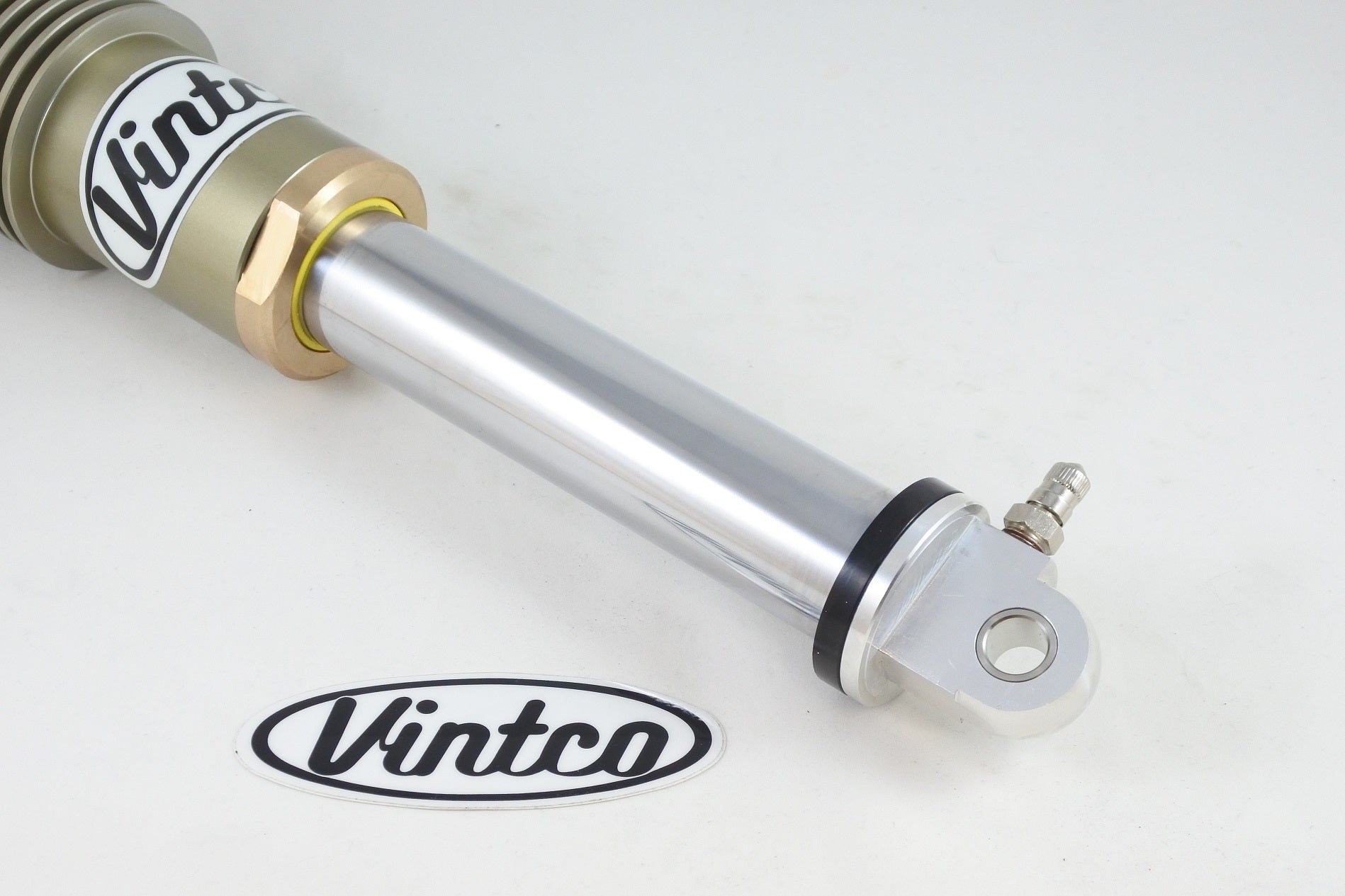

Air Shock Pair 77-77 Can Am MX 125 175 250 15.5 Vintco KSHOCK15.5

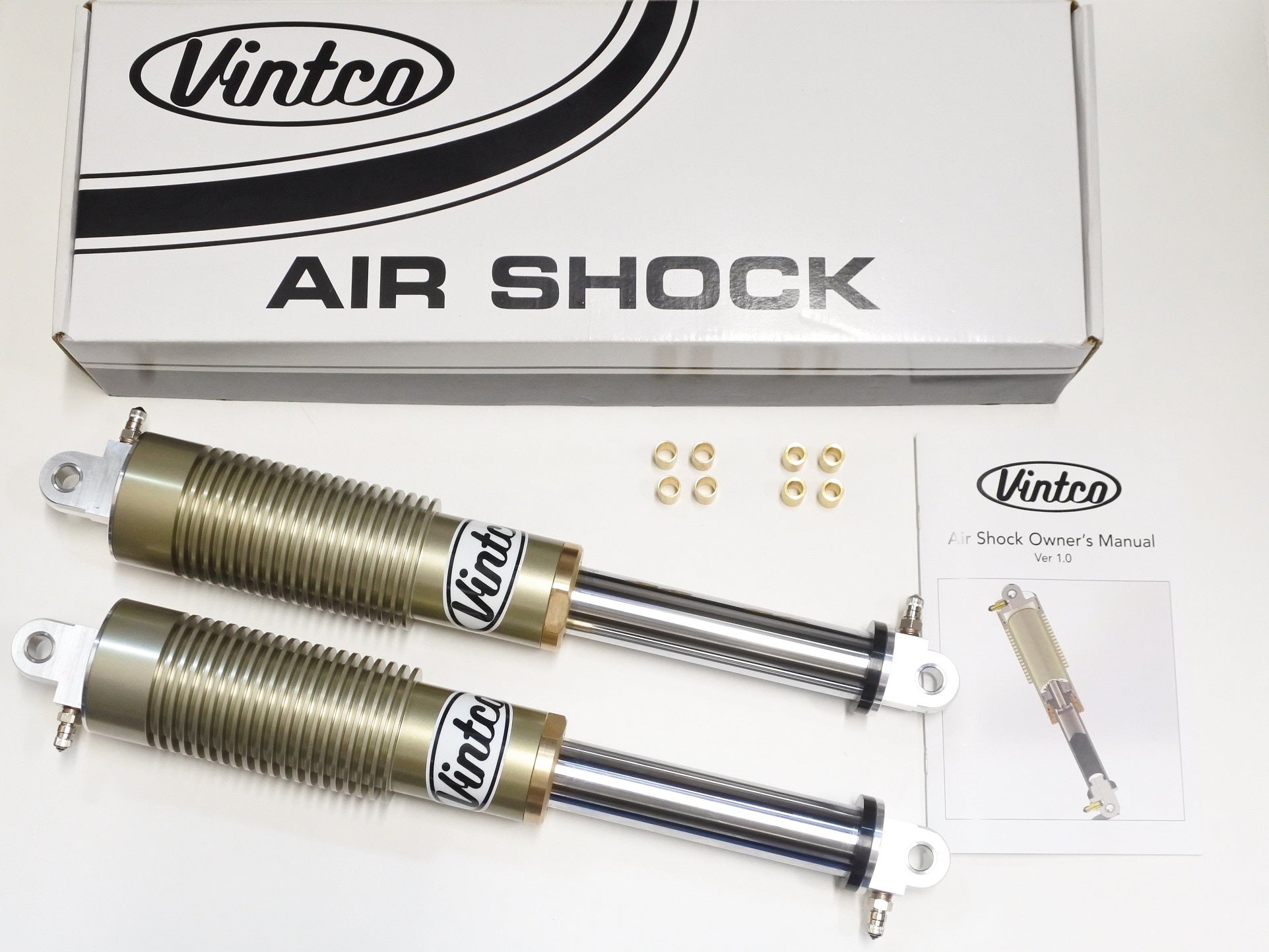

This pair of VintCo 15.5-inch air shocks is produced as an exact duplicate of the original late-1970s air shock design for 1977 Can Am MX 125, 175 and 250 models. The shocks are supplied assembled and ready for installation, with twin high- and low-pressure chambers for adjustable suspension setup. They are fully rebuildable, supplied with bushings, spacers and a VintCo owner’s manual, and require air or nitrogen to be added before sag is set correctly.

Features

• Exact duplicate of the original late-1970s air shock design

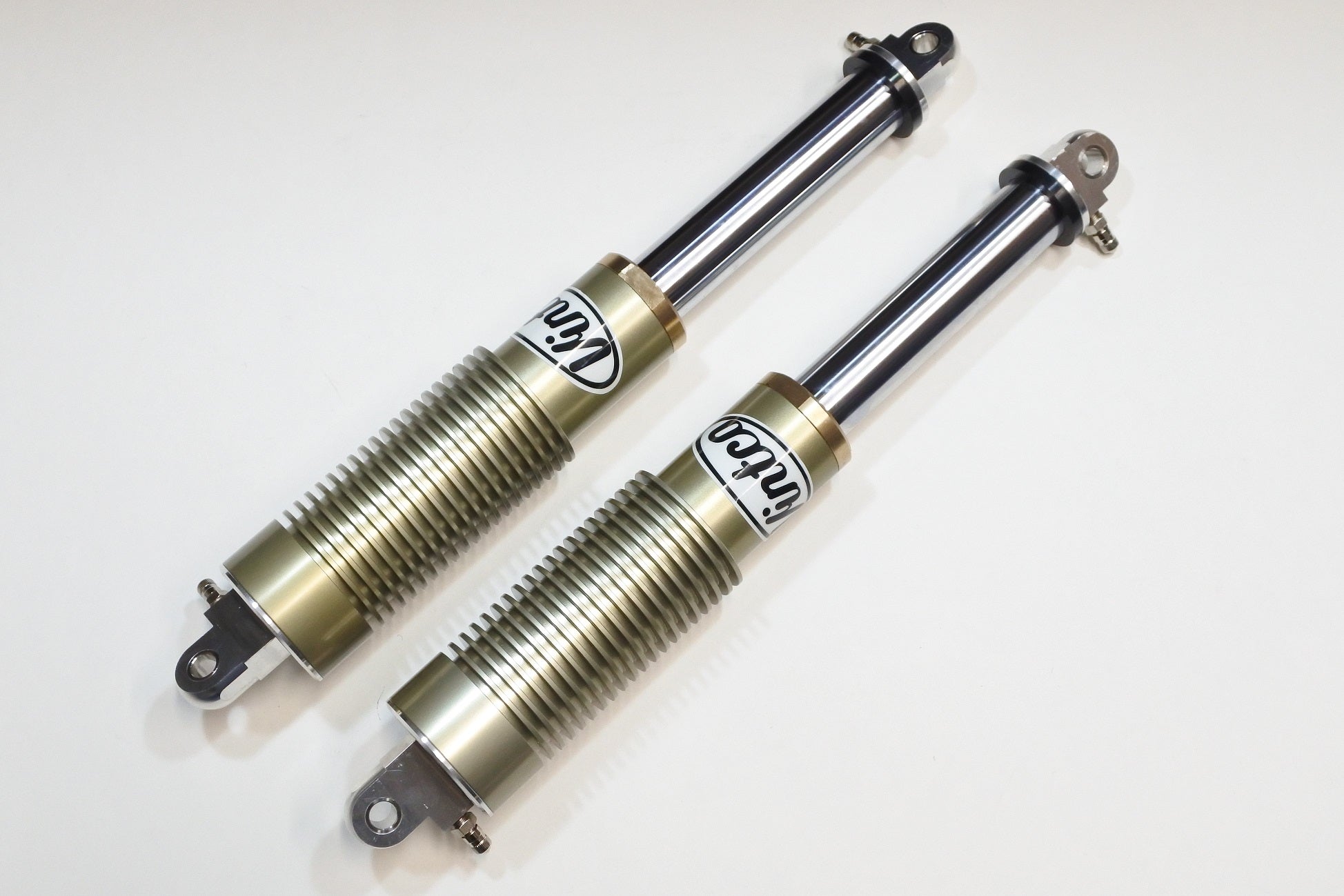

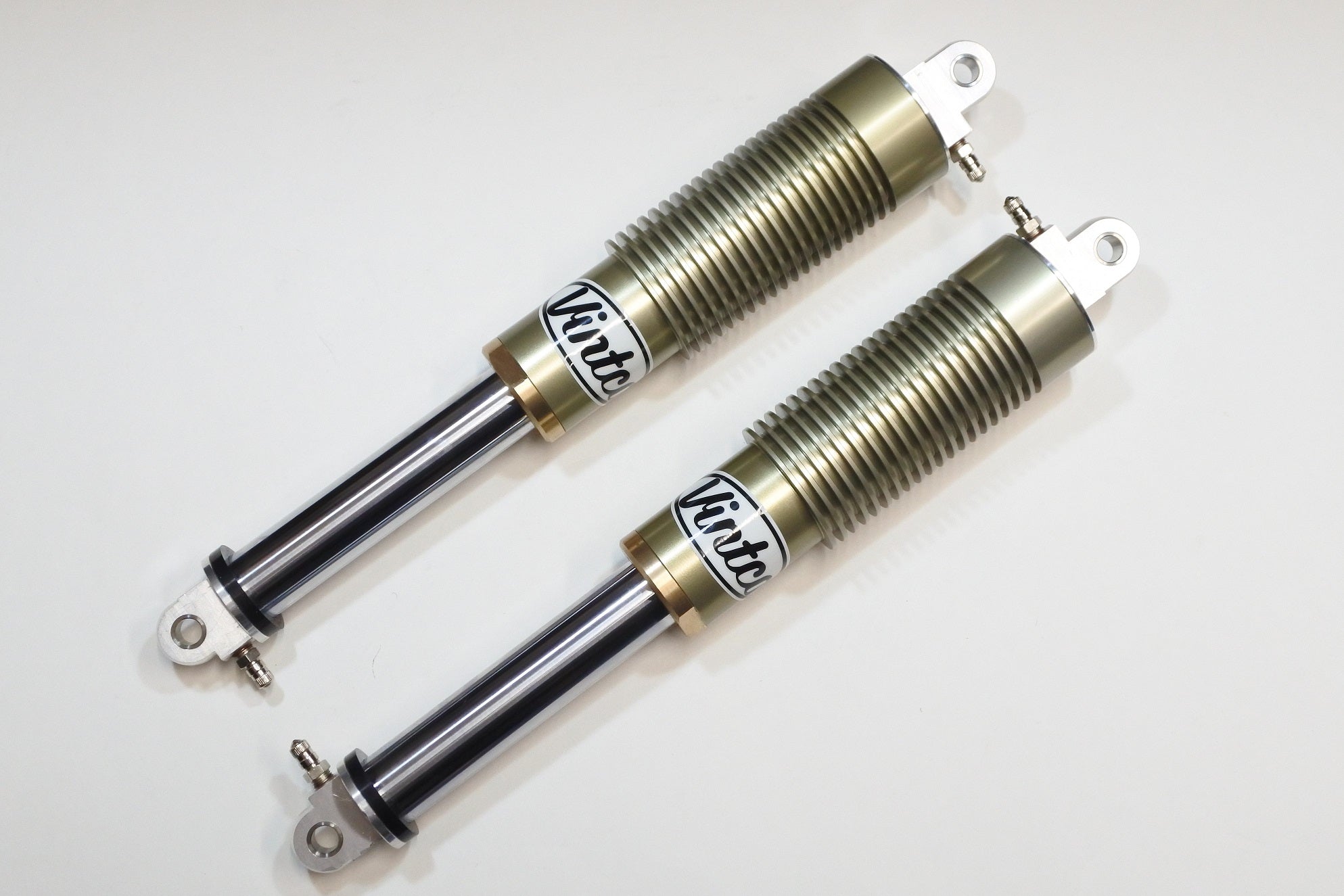

• Pair of complete air shocks
• Twin-chamber design with high- and low-pressure chambers
• Adjustable suspension setup
• Reduces the need to source separate springs to suit rider weight
• Supplied assembled and ready for installation
• Supplied without air; air or nitrogen must be added to set sag correctly
• Some modifications may be required for installation on specific dirt bikes
• Various bushings supplied
• Includes spacers
• Includes VintCo owner’s manual
• Includes all new components
• Fully rebuildable with VintCo rebuild kits
• Hand assembled in the USA
• Customisable for many models
• Available in lengths from 13.5 in to 17.5 in across the range
• Discount codes do not apply to shock purchases

Specifications

• VintCo Part Number: KSHOCK15.5
• Nominal shock length: 15.5 in
• Distance centre to centre: 15.315 in / 389 mm
• Travel: 4.778 in / 121.4 mm
• Collapsed length: 10.535 in / 267.6 mm
• Cap reducer bushings included: 4
• Cap reducer bushing size: 10 x 12 x 16.5 mm

Vehicle Fitments

• 1977 Can Am 175MX
• 1977 Can Am 250MX
• 1977 Can Am 125MX
