AIR SHOCK PAIR 76-82 CAN AM HUSQVARNA MAICO MONTESA SUZUKI VINTCO KSHOCK15.125

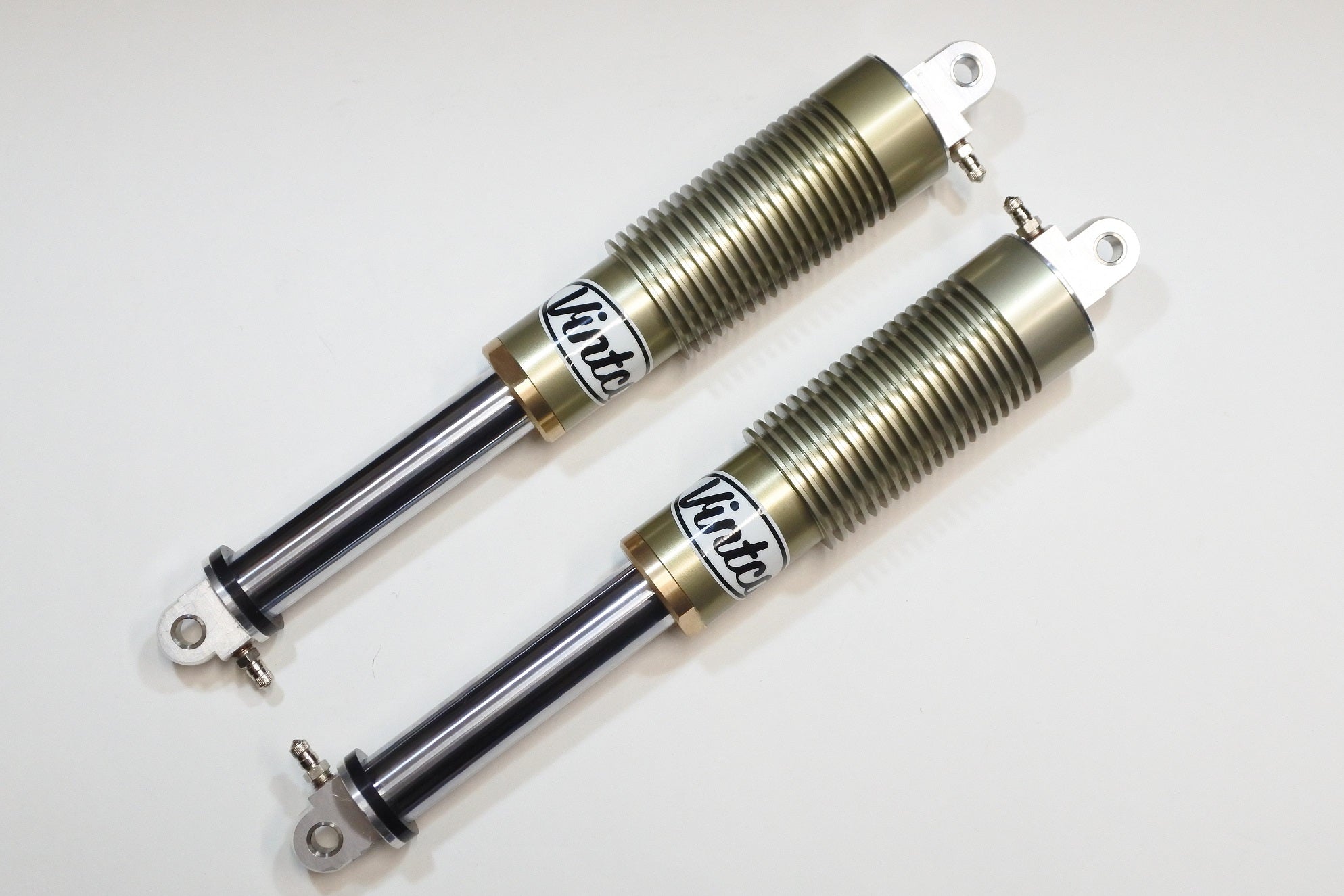

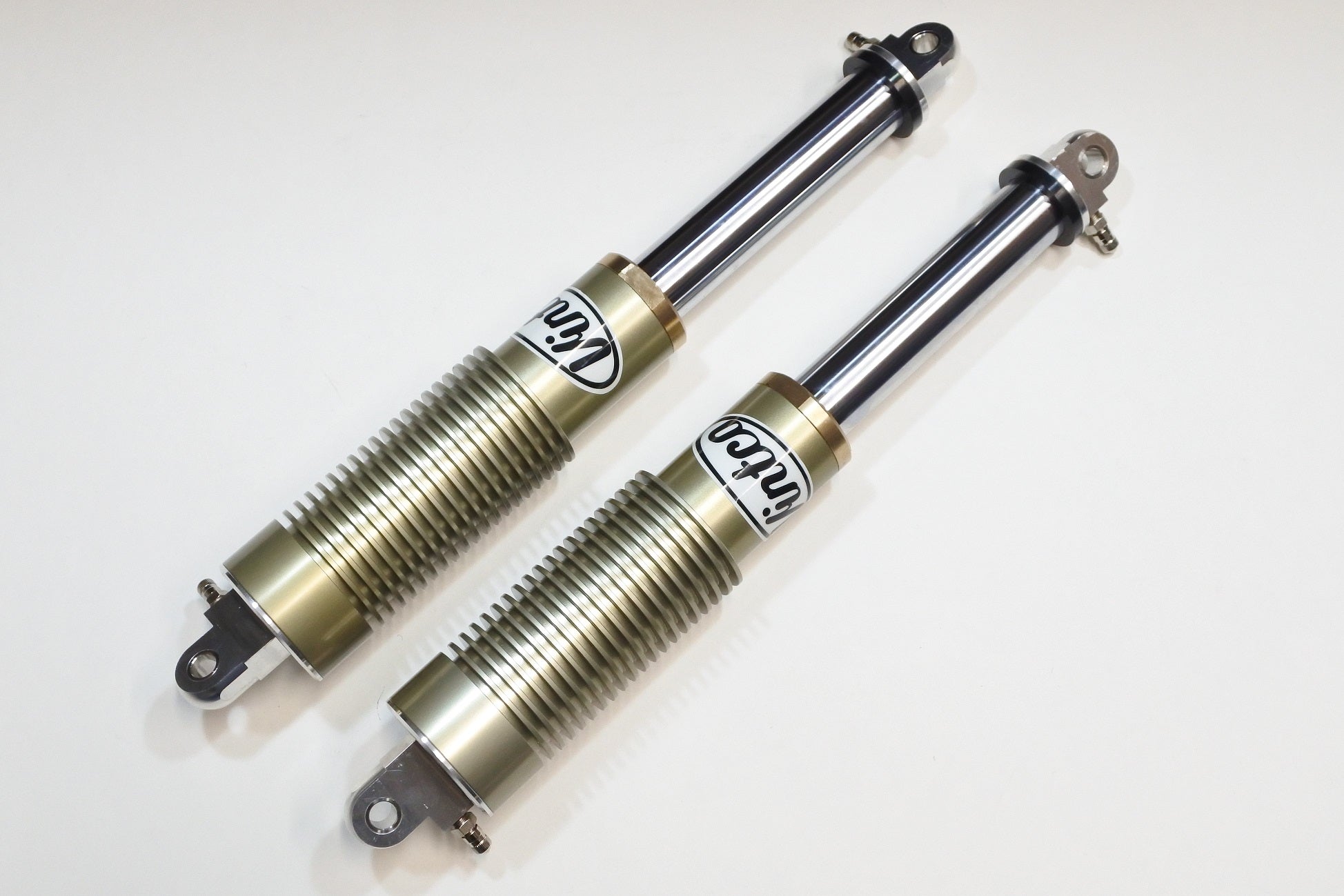

This pair of VintCo air shocks is produced as an exact duplicate of the original late 1970s air shocks, for use on a range of period Can Am, Husqvarna, Maico, Montesa and Suzuki models. The shocks use dual high- and low-pressure chambers for suspension adjustment, are supplied assembled and ready for installation, and can be set up with air or nitrogen. Various bushings and spacers are supplied, although some modifications may still be required depending on the motorcycle. These shocks are hand assembled in the USA, are fully rebuildable with VintCo rebuild kits, and are supplied with a VintCo owner’s manual. Shocks are shipped without air and must be charged with air or nitrogen to set sag correctly. Discount codes do not apply to shock purchases.

Features

• Exact duplicate of the original late 1970s air shock design
• Adjustable with two chambers for high and low pressure
• Allows suspension set-up to be tuned as required
• Supplied assembled and ready for installation
• Requires air or nitrogen to complete set-up
• No spring matching required
• Some modifications may be required for installation on certain dirt bike models

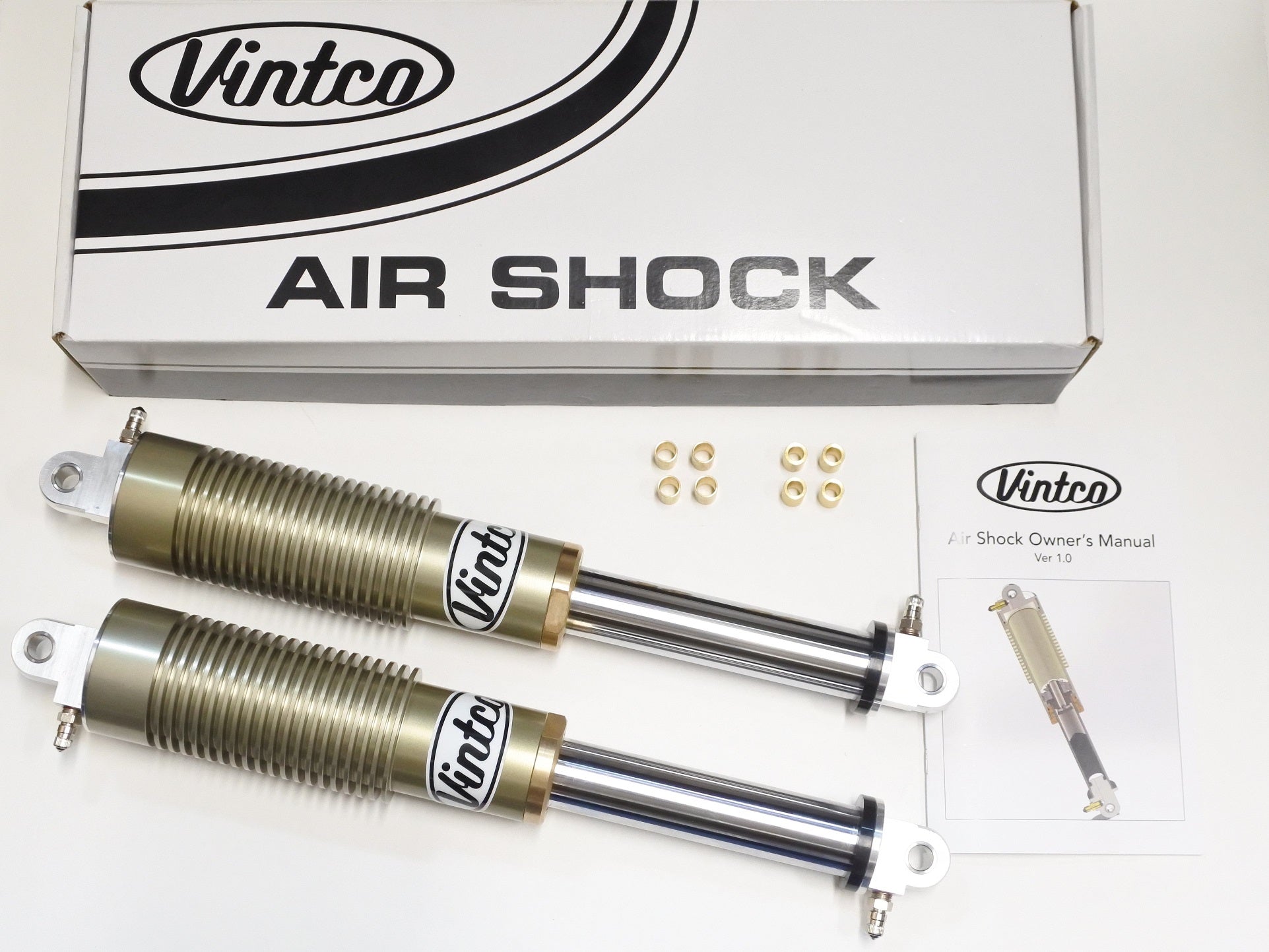

• Supplied with various bushings and spacers
• Fully rebuildable with VintCo rebuild kits
• Hand assembled in the USA
• Supplied as a pair of complete air shocks
• Includes VintCo owner’s manual
• Includes all new components
• Customisable for many models
• Available within the VintCo air shock range in lengths from 13.5 in to 17.5 in

Specifications

• VintCo Part Number: KSHOCK15.125
• Centre-to-centre length: 15.291 in / 388.4 mm
• Travel: 5.014 in / 127.4 mm
• Collapsed length: 10.276 in / 261 mm
• Includes 4 cap reducer bushings: 10 x 12 x 16.5 mm

Vehicle Fitments

• 1976 Suzuki RM250
• 1976 Suzuki RM370
• 1976 Suzuki RM100
• 1976 Can Am 125MX
• 1976 Can Am 175TnT
• 1976 Can Am 175MX
• 1976 Can Am 250MX
• 1976 Can Am 250TnT
• 1977 Suzuki RM250
• 1977 Suzuki RM370
• 1977 Suzuki RM100
• 1977 Suzuki PE250
• 1977 Husqvarna WR390
• 1977 Husqvarna CR390
• 1977 Husqvarna CR250
• 1977 Husqvarna WR250
• 1977 Can Am 125 Qualifier
• 1977 Can Am 175 Qualifier
• 1977 Can Am 250 Qualifier
• 1977 Husqvarna CR125
• 1977 Husqvarna WR125
• 1978 Suzuki RM250
• 1978 Suzuki PE175
• 1978 Suzuki PE250
• 1978 Suzuki RM100
• 1978 Husqvarna WR390
• 1978 Husqvarna CR390
• 1978 Husqvarna CR250
• 1978 Husqvarna OR250
• 1978 Husqvarna WR250
• 1978 Husqvarna OR390
• 1978 Can Am 125MX
• 1978 Husqvarna CR125
• 1978 Husqvarna WR125
• 1978 Can Am 250MX
• 1978 Can Am 370MX
• 1979 Suzuki PE175
• 1979 Suzuki PE250
• 1979 Husqvarna CR250
• 1979 Can Am 125MX
• 1979 Can Am 250MX
• 1979 Can Am 370MX
• 1980 Husqvarna CR250
• 1980 Maico MX 125 Magnum
• 1980 Maico MX 250 Magnum
• 1980 Maico MX 400 Magnum
• 1980 Maico MX 490 Magnum
• 1980 Montesa Cappra125
• 1980 Montesa Cappra250
• 1980 Montesa Cappra414
• 1981 Suzuki SP500
• 1981 Maico MX 125 Magnum
• 1981 Maico MX 250 Magnum
• 1981 Maico MX 400 Magnum
• 1981 Maico 490 Mega 2
• 1981 Maico MX 490 Magnum
• 1982 Suzuki SP500
