1800w/2.5hp 48V 50A Electric Motor Kit Universal Buggy Bike Quad Moto Diy

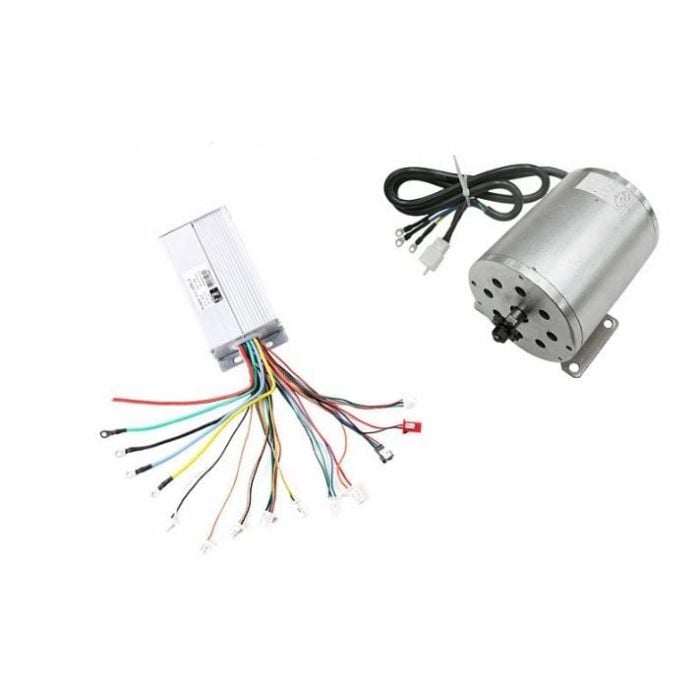

This 48 V brushless DC drive set pairs a high-speed MY1020 motor with a compatible two-mode controller for e-bike and light EV applications. The motor outputs 1800 W at a rated 4300 r/min and is CE approved. The controller supports automatic motor phase identification, multiple brake signal types, three-speed modes, cruise control, reverse, PAS input, throttle interface and anti-theft integration. Further details and wiring guidance can be found in the instructions inside.

Features

• Brushless DC motor with hall sensors
• CE approved motor
• Two-mode brushless controller with automatic motor phase angle identification (learning wires)
• Brake input compatibility: low-level and high-level electrical signals
• Three-speed gear selection (shift and jog modes)
• Constant-speed cruise control
• Reverse gear input
• PAS (pedal assist) input
• Accelerator (throttle) handle interface with regulated sensor supply
• Electric door lock input and conduction wire for key switch circuits
• Anti-theft alarm power and alarm signal interfaces
• Outputs for diagnostic meters: multiple-data meter, hall meter, phase meter
• Headlight/horn/tail-light supply not driven directly by the controller; requires vehicle harness or DC converter as per included guidance
• Basic wiring and debugging instructions included

Specifications

• Motor model: MY1020
• Motor voltage: 48 V DC
• Motor output: 1800 W
• Rated motor speed: 4300 r/min
• Controller nominal voltage: 48 V
• Controller maximum current: 40–50 A

Wiring

• Hall sensor pinout (5-pin): red-black (+5 V), yellow/green/blue (hall signals), black (GND)
• Motor phase wires: yellow, green, blue
• Power input leads: red (Power+), black (Power–)
• Electric door lock: orange (Electric Door Lock +), green (conduction wire)
• Low-level brake: yellow-black (signal), black (GND)
• High-level brake: purple (signal), black (GND)
• Shift three-speed gear: pink (high-speed), grey (low-speed), black (GND)
• Jog three-speed gear: green (variable speed), black (GND)
• Cruise control: blue-white (cruise signal), black (GND)
• Accelerator (throttle) connector: red-white (+4.3 V to +5 V sensor supply), green-white (signal), black (GND)
• Reverse gear: blue-black (signal), black (GND)
• PAS connector: sky blue (PAS signal), red-black (+5 V), black (GND)
• Anti-theft alarm power: red (Power+), black (Power–)
• Anti-theft alarm signal: orange (electric door lock), blue-red (alarm signal), brown-white (phase signal)
• Battery: thick black (power negative), thick red (power positive)
• Motor: thick yellow/green/blue (motor phases)
• Motor hall sensor: 5-pin as specified above
• Ignition (key) switch: thin red (VCC), thin blue
• Indicator: thin red (indicator power output), thin black (indicator negative)
• Brake: thin yellow (brake signal), thin black (negative power) or purple (high-level brake signal), black (GND)
• Speed governor (throttle): thin blue (handlebar signal input), thin black (negative power), thin red (5 V positive power)
• Charge port: thin red (charge input power positive), thin black (power negative)
• Brake light: thin red (power positive), thin black (power negative)
• Lighting note: for 12 V vehicle lights, use a DC converter from battery voltage (e.g. 24–84 V to 12 V) as illustrated in the included instructions
